SE75 Motorcycle Recording System
Motorcycle Dashcam with Dual 1080P Cameras & Optional TPMS
The Arvov SE75 combines front and rear 1080P recording, GPS route review, 5GHz Wi-Fi mobile access, Bluetooth 5.0, smart voice control and optional tire pressure monitoring in a compact motorcycle-ready system.
Recording, connectivity and tire monitoring in one system
SE75 is designed for motorcycle riders, distributors and OEM/ODM projects that need continuous front-and-rear video recording with convenient mobile access. Optional tire pressure sensors allow the same display to show pressure information for both motorcycle tires.

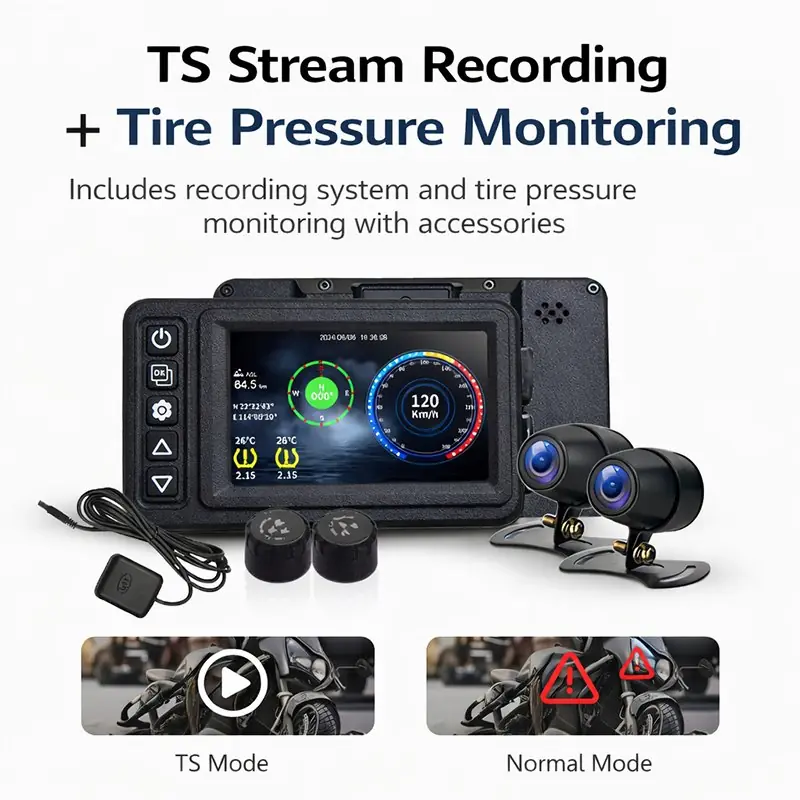

Dual-camera TS stream recording with optional TPMS
The front and rear cameras record at 1920 × 1080P and 30 FPS. TS video, loop recording and automatic recording support help protect usable footage when unexpected power interruption occurs. Optional TPMS sensors add real-time tire pressure information to the display.
- Front and rear 1080P cameras
- TS and normal recording modes
- Loop and automatic recording
- Optional two-wheel tire pressure monitoring

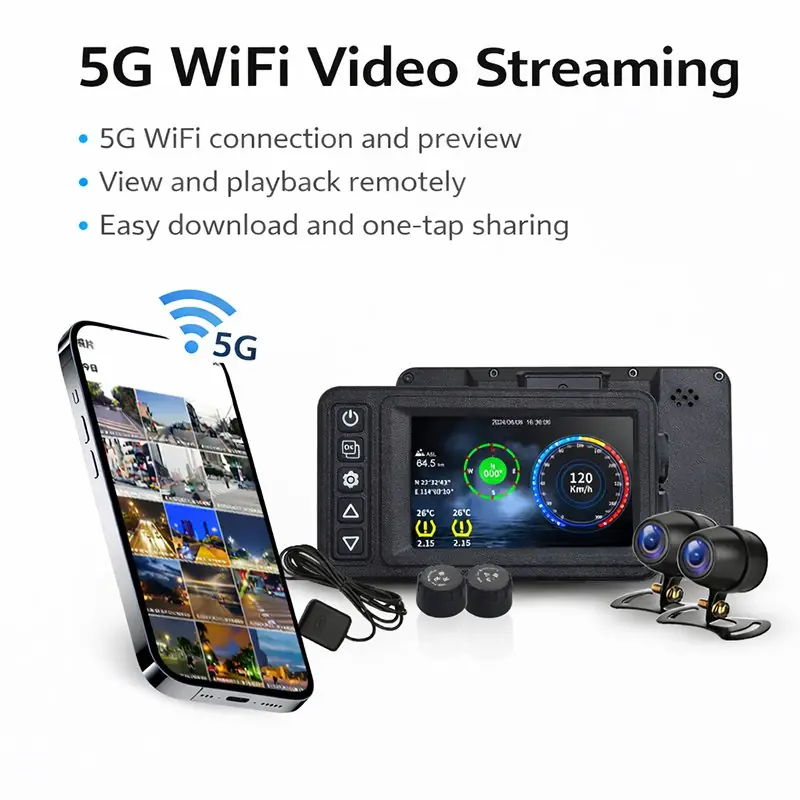

5GHz Wi-Fi mobile video access
Connect the motorcycle dashcam to a compatible mobile phone for video preview, playback, download and supported file sharing. This wireless workflow makes it easier to review ride footage without removing the storage card.
- Mobile video preview
- Remote playback through the compatible app
- Video download and one-tap sharing support
- Bluetooth 5.0 connectivity for supported controls

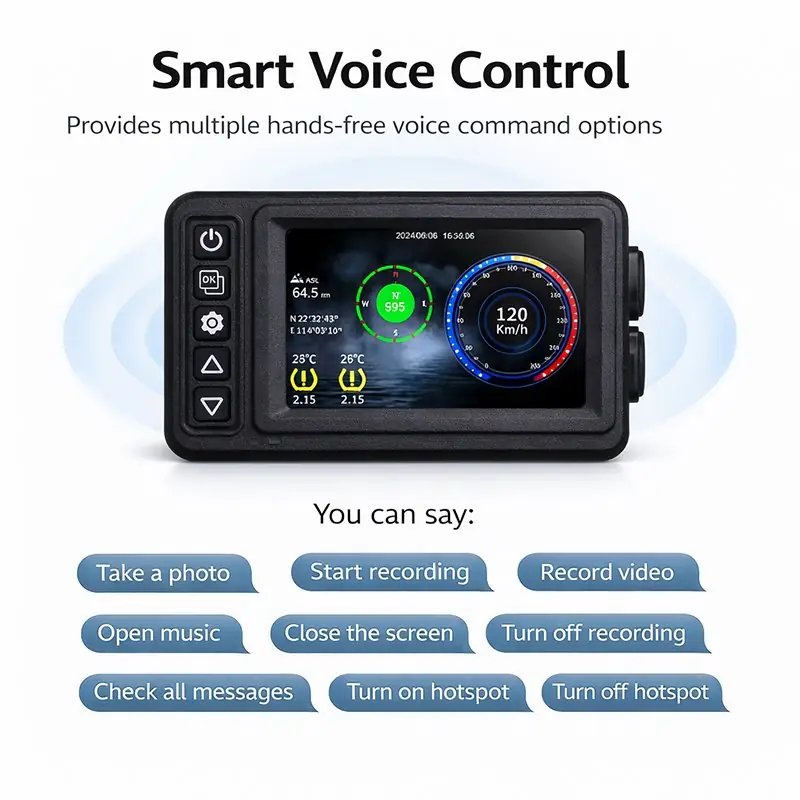

Smart voice control for hands-free operation
Voice commands support common actions such as taking a photo, starting recording, opening music, checking messages and controlling the hotspot or screen. Availability can depend on the configured language and application environment.
- Wireless voice remote control
- Common recording and display commands
- GPS position, compass and route-tracking review
- Super-capacitor design for motorcycle use
SE75 configuration options
The final package depends on the project specification. Confirm the required accessories, storage and TPMS configuration before ordering.
| Core system functions | SE75 display and recorder, front and rear 1080P camera inputs, GPS, 5GHz Wi-Fi and Bluetooth 5.0 |
|---|---|
| Optional TPMS | Two motorcycle tire pressure sensors for front and rear tire monitoring |
| Storage option | Compatible 32 GB to 256 GB SD card, subject to the selected project package |
| OEM/ODM options | Branding, packaging and project configuration can be discussed according to order requirements |
Installation and compatibility guidance
SE75 is designed for motorcycle electrical systems with a 10–30 V input and 5 V conversion. Install the front and rear cameras where the 150° view is unobstructed, protect cable connections and confirm that all seals are correctly fitted.
- Camera lenses: IP68; main unit and remote control: IP67
- Power input: 10–30 V with 5 V conversion
- Storage support: 32 GB to 256 GB SD card
- Mobile video access through 5GHz Wi-Fi; supported controls use Bluetooth 5.0
- Optional TPMS requires two compatible motorcycle tire pressure sensors
SE75 motorcycle dashcam specifications
Technical data below is based on the supplied SE75 product specification. Confirm the final configuration, accessories, storage card and optional TPMS requirement before ordering.
| Model | SE75 |
|---|---|
| Display | 3.5-inch, 854 × 480 |
| Product size / weight | 113 × 62 × 28 mm / 210 g |
| Camera resolution | Front and rear 1920 × 1080P at 30 FPS |
| Camera angle | 150° |
| Waterproof rating | Lens IP68; main unit IP67; remote control IP67 |
| Recording | TS video, loop recording and automatic recording |
| Connectivity | 5GHz Wi-Fi and Bluetooth 5.0 |
| GPS / sensors | GPS, G-sensor and CMOS |
| Storage | 32 GB to 256 GB SD card support |
| Power | 10–30 V input with 5 V conversion; super capacitor |
| Operating temperature | −20 to 70 °C |
| Other functions | WDR, multilingual interface, compatible mobile app and optional TPMS sensors |
Motorcycle dashcam FAQ
Does the SE75 record both the front and rear of the motorcycle?
Yes. SE75 is specified with two 1920 × 1080P cameras recording at 30 FPS, with a 150° camera angle.
Can I review motorcycle dashcam video on a phone?
Yes. The supplied specification lists 5GHz Wi-Fi mobile preview, playback, download and supported sharing through a compatible app.
Does the SE75 include tire pressure monitoring?
TPMS sensors are optional. Tell Arvov whether the project requires two motorcycle tire pressure sensors when requesting a quotation.
Is the SE75 waterproof?
The camera lenses are specified at IP68, while the main unit and remote control are specified at IP67. Correct installation and cable sealing remain important.
What SD card capacity does the motorcycle dashcam support?
The supplied specification lists SD card support from 32 GB to 256 GB.
Related motorcycle electronics resources
Compare the motorcycle CarPlay display, review Arvov TPMS products, download technical information from the Support center, or learn about Arvov engineering and OEM/ODM capabilities.
Discuss your SE75 motorcycle dashcam project
Share your target market, order quantity, preferred camera configuration and TPMS requirement. Arvov supports distributors and OEM/ODM automotive-electronics projects.
