MXC-816 Car Dash Cam
MXC-816 4K Dual Channel Car Dash Cam
The Arvov MXC-816 is a dual-channel car dash cam with front 4K and rear 1080P recording, a 3.2-inch IPS display, built-in 2.4GHz Wi-Fi, app control, G-sensor collision locking and optional GPS tracking.
4K dashboard camera for front and rear driving evidence
MXC-816 is designed for drivers, distributors and OEM/ODM projects that need high-resolution front coverage plus a separate rear camera. It records the road ahead in 3840 × 2160 resolution and the rear view in 1920 × 1080P, while loop recording and automatic recording support continuous daily use.

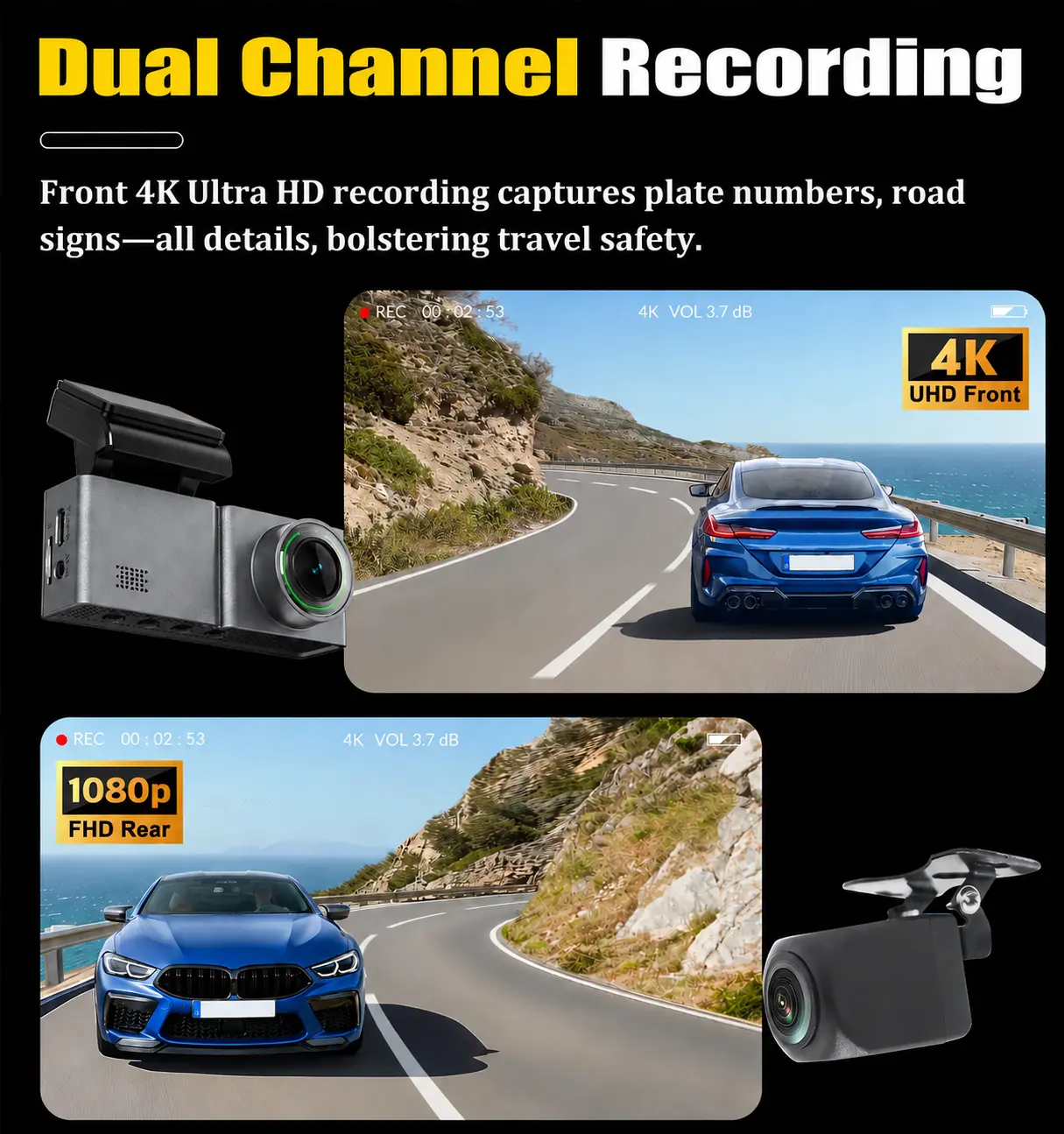

Dual-channel 4K front and 1080P rear recording
The front camera captures 3840 × 2160 video and the rear camera records 1920 × 1080P footage. A 150° field angle, F1.8 aperture, WDR, TS video format and loop recording help preserve useful details across changing road conditions.
- Front 4K Ultra HD recording
- Rear 1080P Full HD recording
- 150° field angle and F1.8 aperture
- WDR, loop recording and automatic recording
Built-in 2.4GHz Wi-Fi and mobile app control
Connect a compatible smartphone to the dash cam for supported live viewing, recorded-file management and camera settings. The G-sensor can lock relevant footage when a collision event is detected, helping reduce accidental overwriting of important video.
- Built-in 2.4GHz Wi-Fi module
- Compatible mobile app support
- G-sensor collision detection
- Automatic collision-footage locking
Optional GPS tracking for route review
An optional GPS configuration can record position information for supported route review. Because GPS is not listed as standard equipment, buyers should confirm whether the GPS module is required before production or ordering.
- Optional GPS location recording
- Supported driving-route review
- Clear standard-versus-optional configuration
- Suitable for distributor and fleet-related projects
Parking monitoring and time-lapse recording
Parking monitoring and time-lapse recording require a compatible hardwiring kit and correct vehicle installation. The super-capacitor design and 10–30V input specification are intended for automotive power environments.
Hardwiring required
A compatible hardwiring kit is required for parking monitor and time-lapse functions.
Super capacitor
Uses a super capacitor instead of a conventional lithium battery.
Wide input range
Supports 10–30V vehicle input with regulated 5V system power.
MXC-816 car dash cam specifications
Specifications below are based on the supplied MXC-816 product document. Frame-rate values are omitted where the source formatting is ambiguous.
| Model | MXC-816 |
|---|---|
| Screen | 3.2-inch IPS LCD display |
| Weight | 210 g |
| Front resolution | 3840 × 2160 (4K) |
| Rear resolution | 1920 × 1080P |
| Lens / aperture | 2G4P / F1.8 |
| Field angle | 150° |
| Video format | TS |
| Recording | Loop recording and automatic recording supported |
| CPU | Eeasy SA830 |
| Image sensors | GC4653 + SC2336 CMOS |
| GPS | Optional configuration supported |
| G-sensor / WDR | Supported |
| Power storage | Super capacitor |
| Input voltage | 10–30V, regulated to 5V |
| Operating temperature | −20°C to 70°C |
| TF card storage | 32GB–256GB |
| Wi-Fi / app | Built-in 2.4GHz Wi-Fi; compatible app supported |
| Languages | Multilingual interface |
Configuration, compatibility and OEM/ODM support
MXC-816 is intended for passenger-vehicle dash cam installations. Confirm vehicle power, front and rear camera positions, cable routing, storage capacity, optional GPS and hardwiring requirements before ordering.
Standard functions
Main dash cam, rear-camera recording, 2.4GHz Wi-Fi, app support, G-sensor, WDR and loop recording.
Optional equipment
GPS tracking and the hardwiring kit should be specified according to the required project functions.
OEM/ODM projects
Discuss branding, packaging, interface, accessories and documentation requirements before production.
MXC-816 car dash cam FAQ
What recording resolution does the MXC-816 support?
It supports front 3840 × 2160 4K recording and rear 1920 × 1080P recording.
Does the MXC-816 include GPS as standard?
No. GPS tracking is an optional configuration and should be confirmed before ordering.
Does this car dash cam support Wi-Fi and app control?
Yes. It has a built-in 2.4GHz Wi-Fi module and supports a compatible mobile app.
What storage capacity does the MXC-816 support?
It supports TF cards from 32GB to 256GB.
Does parking monitoring require additional equipment?
Yes. Parking monitoring and time-lapse recording require a compatible hardwiring kit.
Project Inquiry
Discuss your MXC-816 car dash cam project
Tell us your required configuration, accessories, target market, branding and expected quantity.
