MXC-851 Car Dash Cam
MXC-851 4K+4K Dual Channel Car Dash Cam
The Arvov MXC-851 is a dual-channel car dash cam with front 4K and rear 4K recording at the stated 25 fps specification. It combines a 3.2-inch IPS display, built-in 2.4GHz Wi-Fi, mobile app support, G-sensor collision locking, WDR and optional GPS.
Dual Channel Coverage
Front and rear 4K dashboard camera recording
MXC-851 records the road ahead and rear traffic simultaneously for passenger vehicles, distributors and OEM/ODM projects. Its front and rear 4K specification supports detailed two-direction driving documentation.

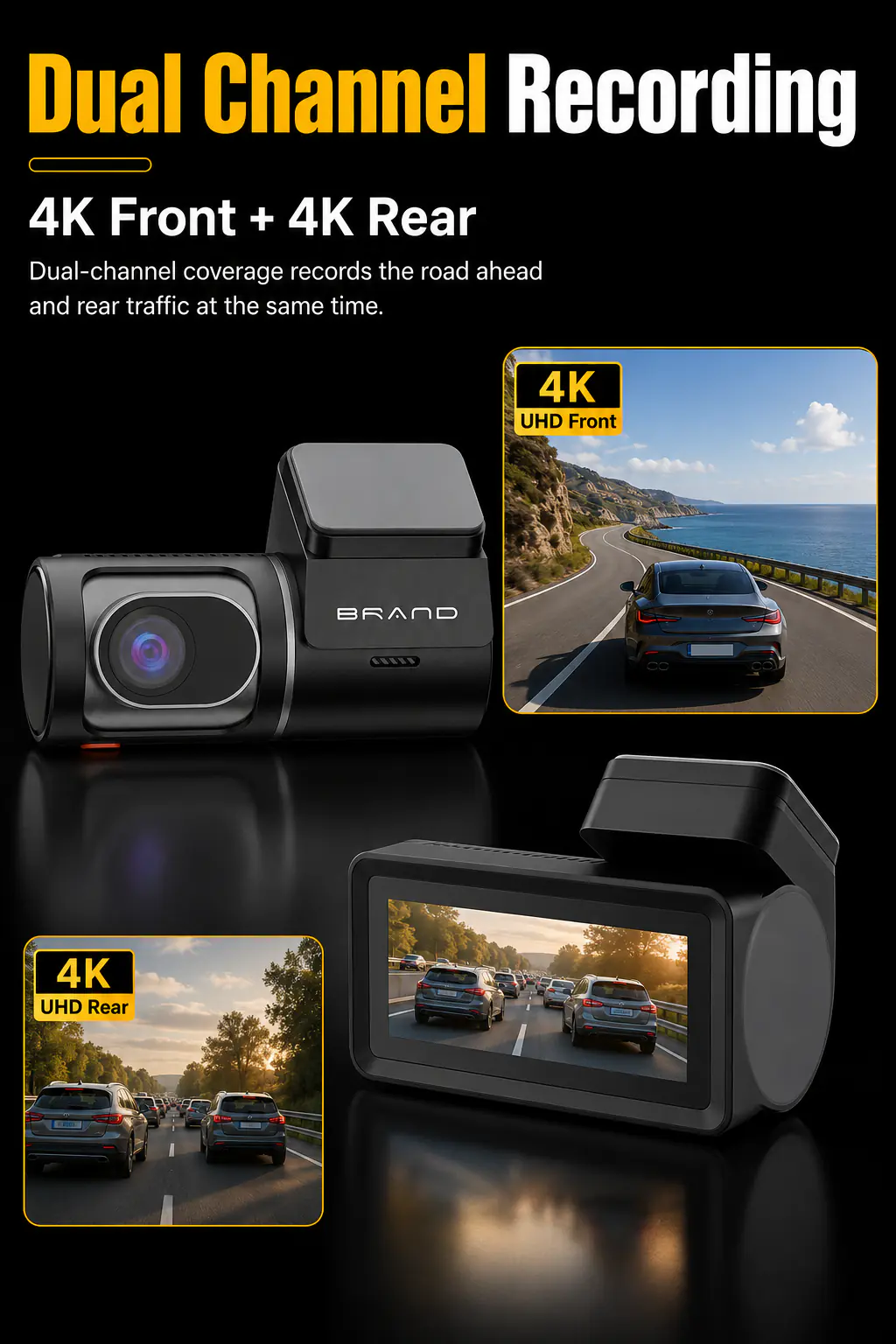

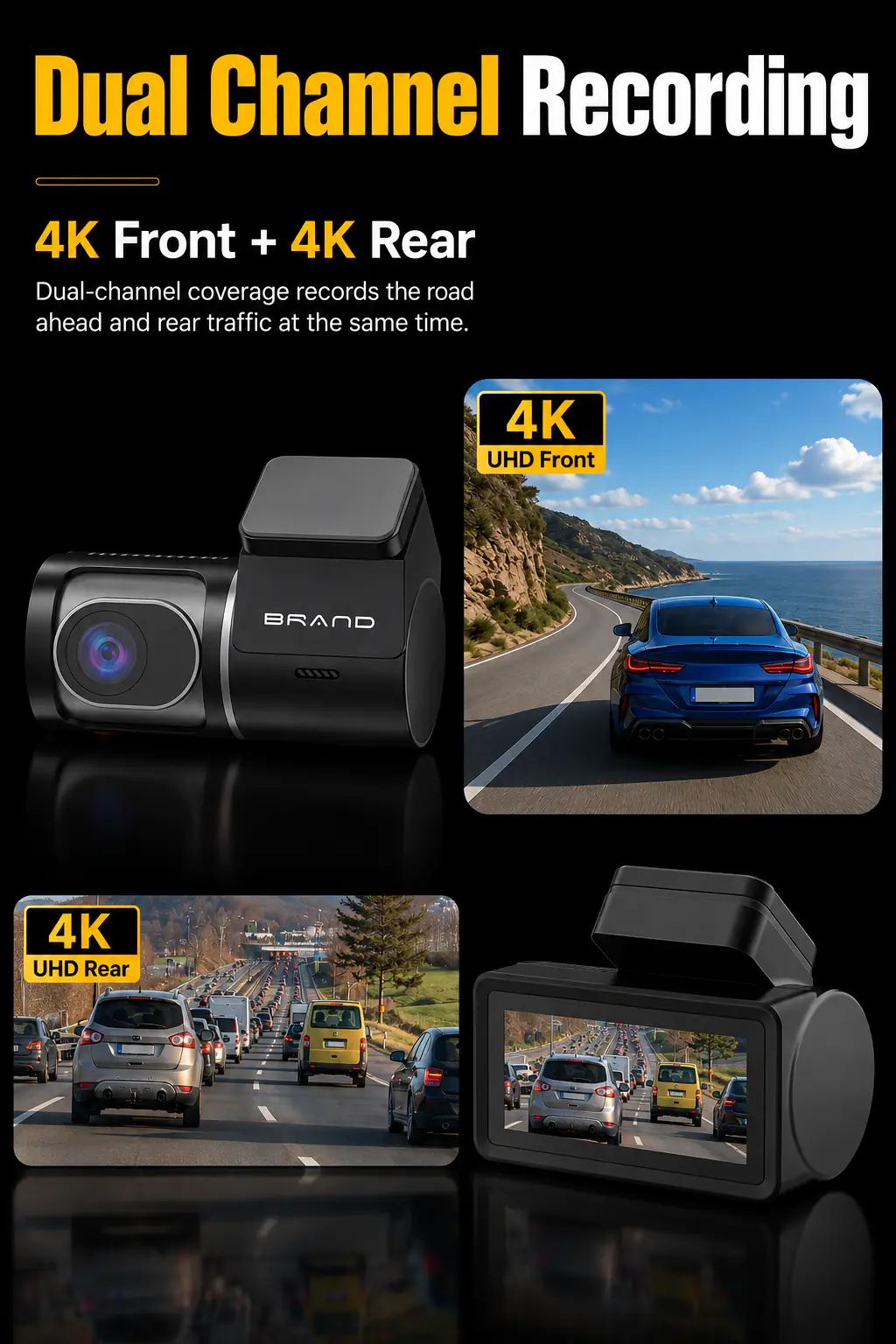

4K+4K Recording
Dual-channel recording for front and rear driving evidence
The two-camera system records the road ahead and rear traffic at the same time. A 150° field angle, F2.0 aperture, WDR, loop recording and automatic recording support everyday driving documentation.
- Front 4K and rear 4K recording
- 25 fps recording specification
- 150° field angle
- G-sensor collision footage locking
Wi-Fi & App Support
Built-in 2.4GHz Wi-Fi and mobile app support
Connect a compatible smartphone to preview supported camera views, manage recorded files and adjust available settings. Important footage can be reviewed and saved through the supported mobile app workflow.
- Built-in 2.4GHz Wi-Fi module
- Compatible mobile app support
- Recorded-file viewing and management
- Loop recording and automatic recording
Optional GPS
Optional GPS tracking for supported route review
GPS is available as an optional configuration for supported location information and driving-route review. Buyers should confirm the GPS requirement before ordering because it is not listed as standard equipment.
- Optional location information
- Supported driving-route review
- Configuration confirmed before production
Vehicle Protection
Parking monitoring and time-lapse recording
Parking monitoring and time-lapse recording require a compatible hardwiring kit and correct vehicle installation. The super-capacitor design and 10–30V vehicle input specification are intended for automotive power environments.
Hardwiring required
A compatible hardwiring kit is required for parking monitoring and time-lapse functions.
Super capacitor
The power-storage design uses a super capacitor instead of a conventional lithium battery.
Wide vehicle input
Supports 10–30V vehicle input through a regulated 5V power supply.
Specifications
MXC-851 technical specifications
| Model | MXC-851 |
|---|---|
| Screen | 3.2-inch IPS LCD display |
| Product weight | 210 g |
| Recording resolution | Front 4K + rear 4K at 25 fps |
| Lens / aperture | 2G3P / F2.0 |
| Field angle | 150° |
| Video format | TS |
| Recording functions | Loop recording and automatic recording supported |
| CPU | iCatch V36 |
| Image sensors | SC2331H + 5015J CMOS |
| GPS | Optional |
| G-sensor / WDR | Supported |
| Power storage | Super capacitor |
| Input voltage | 10–30V vehicle input, regulated to 5V |
| Operating temperature | −20°C to 70°C |
| TF card storage | 32GB–512GB |
| Wi-Fi / app | Built-in 2.4GHz Wi-Fi; compatible app supported |
| Languages | Multilingual interface |
Project Configuration
Package contents and OEM/ODM support
Confirm camera positions, cable routing, storage, optional GPS and hardwiring requirements before ordering.
Package contents
Main unit, rear camera, rear-camera extension cable, hardwiring kit, installation tool, printed manual and neutral packaging.
Optional equipment
GPS is optional. Confirm the final accessory package according to the required parking-monitoring and time-lapse functions.
OEM/ODM projects
Discuss logo branding, packaging, interface languages, accessories and documentation requirements before production.
FAQ
MXC-851 car dash cam questions
What recording resolution does the MXC-851 support?
The product specification lists front 4K and rear 4K dual-channel recording at 25 fps.
Does the MXC-851 support Wi-Fi and app control?
Yes. It includes built-in 2.4GHz Wi-Fi and supports a compatible mobile app.
Is GPS included as standard?
No. GPS is an optional configuration and should be confirmed before ordering.
What TF card capacity does the MXC-851 support?
The product specification supports TF cards from 32GB to 512GB.
Does parking monitoring require a hardwiring kit?
Yes. Parking monitoring and time-lapse recording require a compatible hardwiring kit and correct installation.
Project Inquiry
Discuss your MXC-851 car dash cam project
Tell us your required configuration, accessories, target market, branding and expected quantity.
