MXC-859 Car Dash Cam
MXC-859 2K Four Channel Car Dash Cam
The Arvov MXC-859 records the front, cabin-left, cabin-right and rear views simultaneously. It combines 2K+1K+1K+1K recording at 25 fps, a 3-inch IPS display, built-in 2.4GHz Wi-Fi, mobile app support and optional GPS.
Four Channel Coverage
Front, cabin-left, cabin-right and rear recording
MXC-859 provides four simultaneous views for passenger vehicles, rideshare use, fleets and OEM/ODM projects. The 2K front channel captures the road ahead while three 1K channels document the cabin-left, cabin-right and rear views.

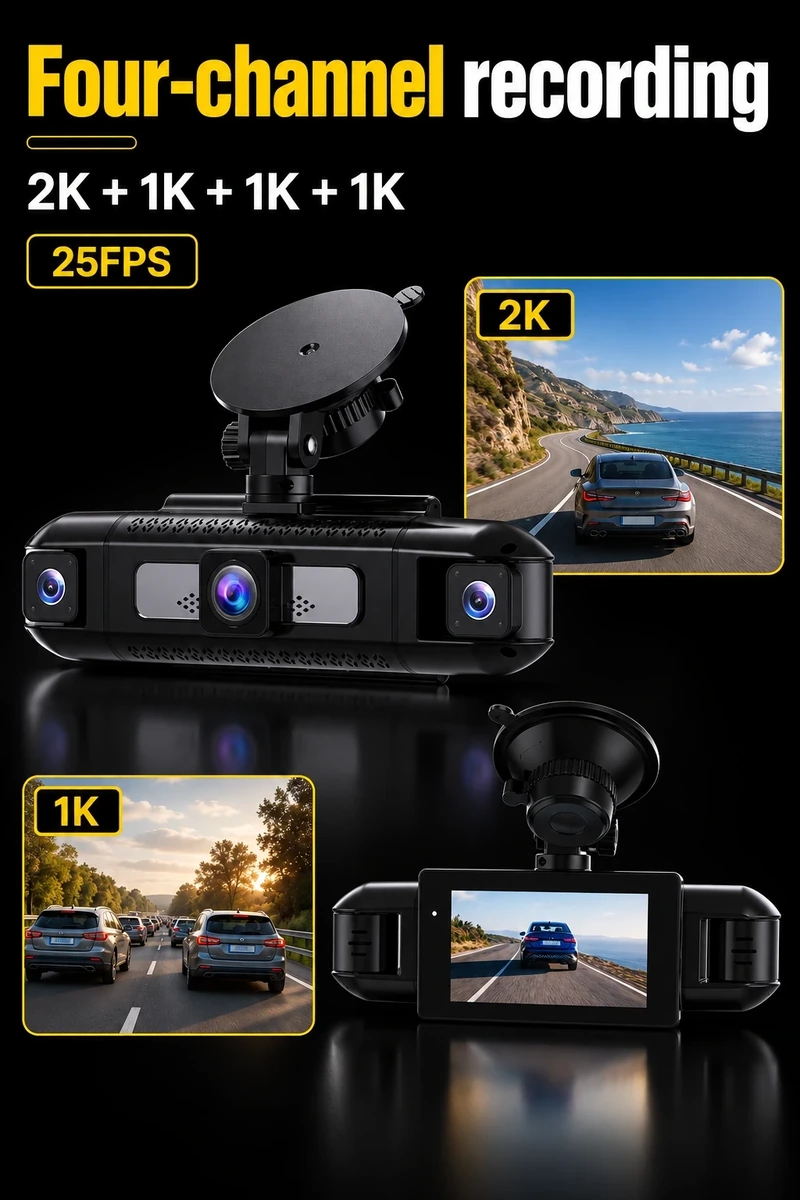

Four Channel Recording
2K+1K+1K+1K synchronized video coverage
The four-channel configuration records all four confirmed positions at 25 fps. A 150° field-angle specification, F1.8 aperture, WDR and automatic recording support practical driving documentation.
- Front 2K recording
- Cabin-left and cabin-right 1K recording
- Rear 1K recording
- G-sensor collision footage locking

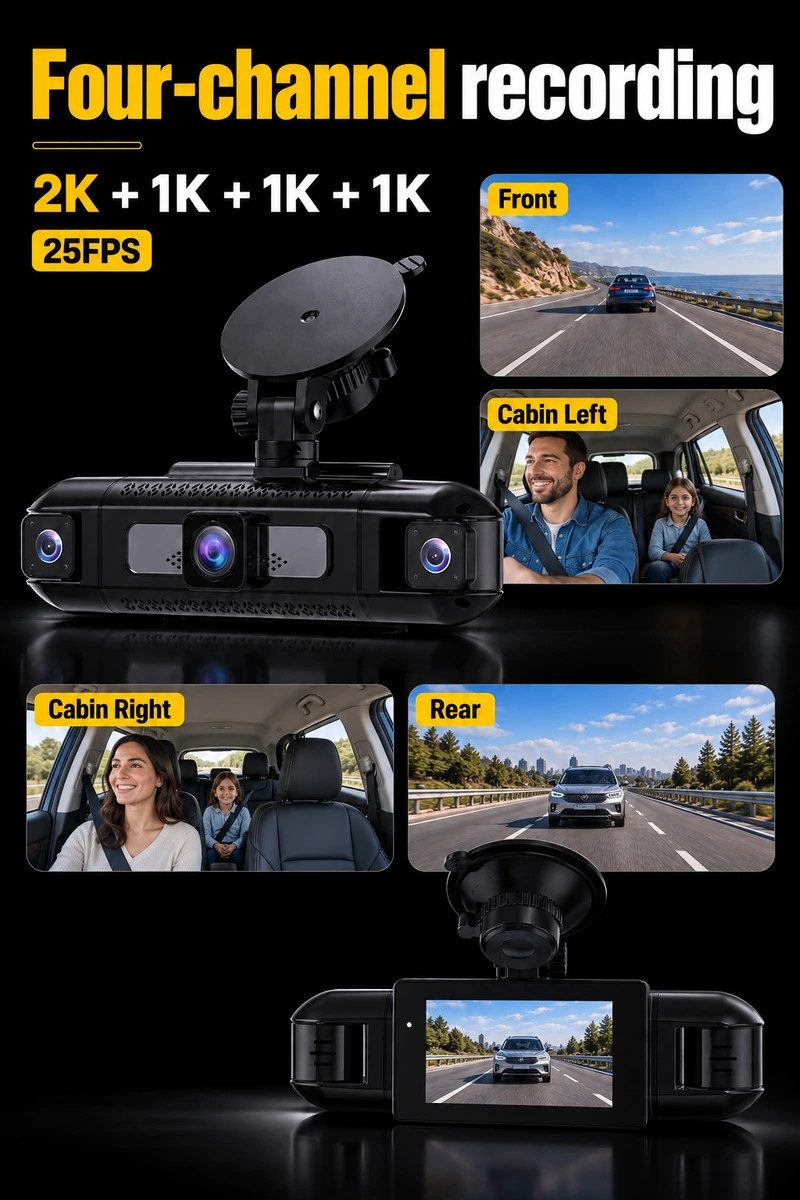

Four View Monitoring
See the road, both cabin sides and traffic behind
The confirmed positions are front, cabin left, cabin right and rear. This layout helps document road events, activity on both sides of the cabin and vehicles approaching from behind.
- Four clearly defined viewing positions
- Simultaneous 25 fps recording
- 3-inch IPS LCD display
- TS video format

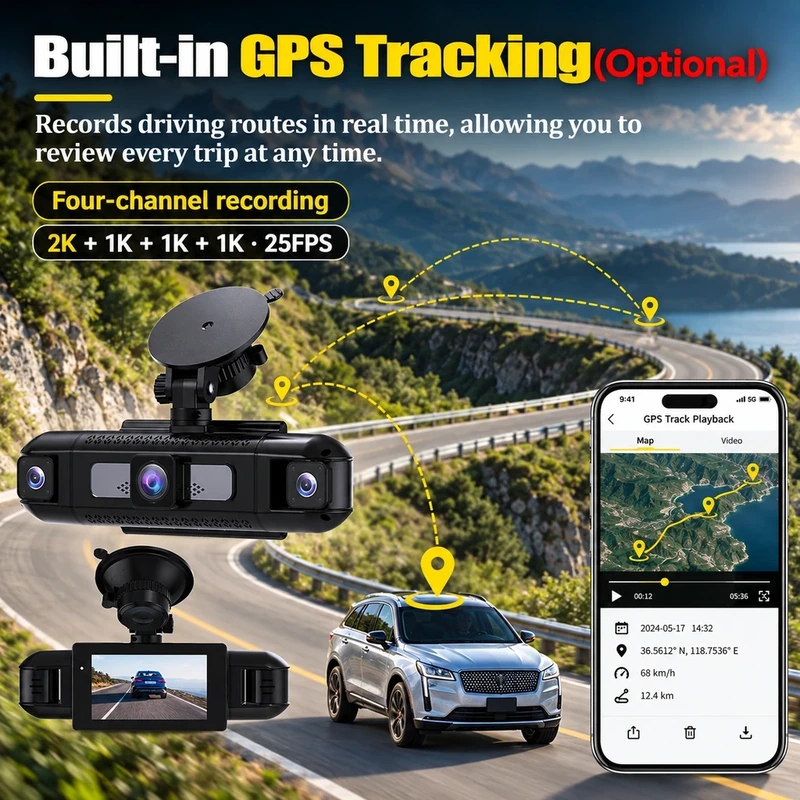

Optional GPS
Choose GPS tracking when route information is required
GPS is optional. When selected and supported by the compatible app workflow, it can record trip location information for later route review. Confirm the required configuration before ordering.
- Optional GPS configuration
- Built-in 2.4GHz Wi-Fi
- Compatible mobile app support
- Route review depends on the selected GPS version
Vehicle Protection
Parking monitoring, time-lapse recording and collision locking
Parking monitoring and time-lapse recording require the supplied hardwiring cable to be correctly installed. The G-sensor locks collision-related footage while loop recording manages storage.
Hardwiring required
Correct hardwiring installation is required for parking monitoring and time-lapse recording.
Loop recording
Older unlocked files are overwritten when storage becomes full.
Automotive power
A super capacitor and 10–30V vehicle input specification suit automotive use.
Specifications
MXC-859 technical specifications
| Model | MXC-859 |
|---|---|
| Channel configuration | Front + cabin left + cabin right + rear |
| Screen | 3-inch IPS LCD display |
| Weight | 210 g |
| Recording resolution | Front 2K + cabin left 1K + cabin right 1K + rear 1K at 25 fps |
| Field angle | 150° |
| Lens / aperture | 2G3P / F1.8 |
| Video format | TS |
| Recording functions | Loop recording and automatic recording supported |
| CPU | SigmaStar SSC8826Q |
| Image sensors | GC2053 + GC2083 + GC2083 + OV2710 CMOS |
| GPS | Optional |
| G-sensor / WDR | Supported |
| Power storage | Super capacitor |
| Input voltage | 10–30V vehicle input, regulated to 5V |
| Operating temperature | −20°C to 70°C |
| TF card storage | 32GB–512GB |
| Wi-Fi / app | Built-in 2.4GHz Wi-Fi; compatible app supported |
| Languages | Multilingual interface |
Package and Projects
Included accessories and OEM/ODM support
Package contents
Main unit, rear camera, extension cable, hardwiring cable, pry tool, printed manual and neutral packaging.
Configuration
Confirm GPS, storage, cable routing and app requirements before ordering.
OEM/ODM
Discuss branding, packaging, languages, accessories and documentation before production.
FAQ
MXC-859 car dash cam questions
What four views does the MXC-859 record?
It records the front, cabin-left, cabin-right and rear views simultaneously.
What is the MXC-859 recording resolution?
The stated specification is front 2K plus three 1K channels at 25 fps.
Does the MXC-859 support Wi-Fi and app control?
Yes. It includes built-in 2.4GHz Wi-Fi and supports a compatible mobile app.
Is GPS included as standard?
No. GPS is an optional configuration that should be confirmed before ordering.
What TF card capacity is supported?
MXC-859 supports TF cards from 32GB to 512GB.
Does parking monitoring require hardwiring?
Yes. Parking monitoring and time-lapse recording require correct hardwiring installation.
Project Inquiry
Discuss your MXC-859 car dash cam project
Tell us your required configuration, accessories, branding, target market and expected quantity.
