SE3 Motorcycle DVR
SE3 Dual 1080P Motorcycle Dashcam with GPS
The Arvov SE3 combines front and rear 1080P recording, GPS route tracking, 5GHz Wi-Fi mobile access, a wired remote control and motorcycle-ready waterproof components in a compact DVR system.
Compact motorcycle dash cam for front and rear recording
SE3 is designed for riders, distributors and OEM/ODM projects that need continuous front-and-rear video coverage without a large dashboard display. Its separate main unit works with two cameras, GPS, a wired remote and mobile viewing through a compatible app.
Dual 1080P front and rear motorcycle recording
Both cameras record at 1920 × 1080P and 30 FPS. The 150° field angle, WDR, TS video format, loop recording and automatic recording support continuous riding footage from two directions.
- Front 1080P at 30 FPS
- Rear 1080P at 30 FPS
- 150° camera field angle
- WDR, loop recording and automatic video recording
5GHz Wi-Fi mobile preview, playback and download
Connect a compatible smartphone to view the camera, review recorded files and download useful clips without repeatedly removing the storage card.
- Mobile video preview
- Recorded-video playback
- File download and supported sharing
- Fast 5GHz Wi-Fi connection
GPS position and route tracking review
The integrated GPS function records position information for supported route review and provides a compass function. This helps riders and project operators review where recorded footage was captured.
- GPS position recording
- Riding-route review
- Compass information
- G-sensor and CMOS crash sensing support
Motorcycle power
Supports 10–30V input with regulated 5V output for the recording system.
Super capacitor
Designed for automotive power conditions without relying on a conventional lithium battery.
Wide storage range
Supports 32GB to 256GB storage cards.

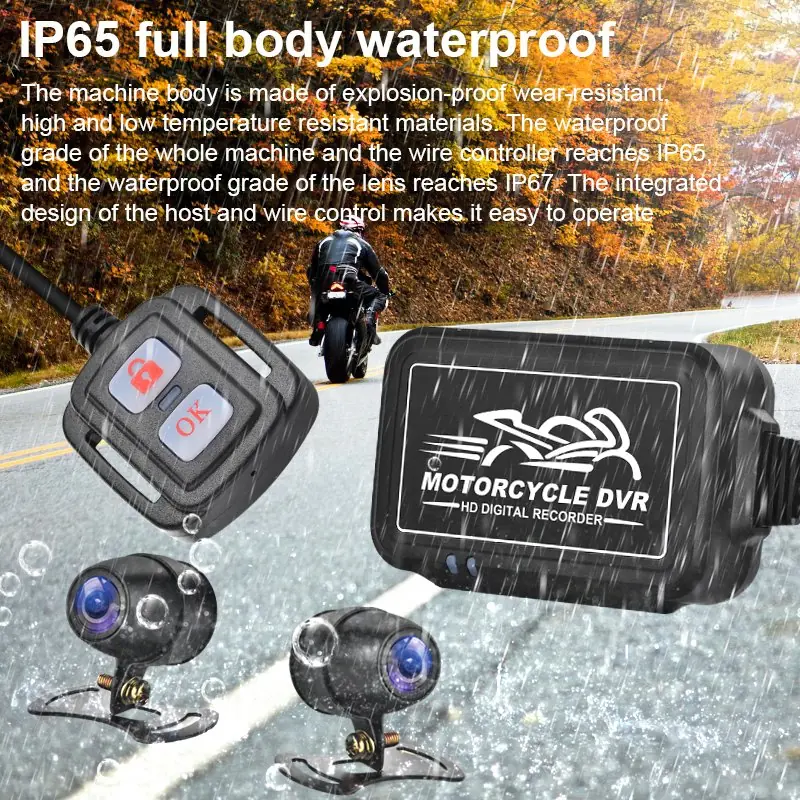

Waterproof components and wired remote control
The SE3 main unit and wired remote are rated IP65, while the front and rear cameras are rated IP67. The wired remote gives the rider convenient control from the handlebar area when correctly installed.
- IP65 main DVR unit
- IP65 wired remote control
- IP67 front and rear cameras
- Aluminum-alloy anti-shake, shock-absorbing and anti-theft bracket
SE3 motorcycle dashcam specifications
Specifications are based on the supplied SE3 product information and confirmed waterproof ratings shown in the product material.
| Model | SE3 |
|---|---|
| Product size / weight | 113 × 62 × 28 mm / 210 g |
| Camera resolution | Front 1920 × 1080P at 30 FPS; rear 1920 × 1080P at 30 FPS |
| Field angle | 150° |
| Waterproof ratings | Main unit IP65; wired remote IP65; cameras IP67 |
| Video format | TS |
| Recording | Loop recording and automatic recording supported |
| CPU | JL5709 |
| Position and sensors | GPS, G-sensor and CMOS crash sensing |
| Power storage | Super capacitor |
| Input voltage | 10–30V, regulated to 5V |
| Operating temperature | −20°C to 70°C |
| Storage | 32GB–256GB |
| Connectivity | 5GHz Wi-Fi and Bluetooth 5.0 |
| Other functions | WDR, compatible app and multilingual support |
Configuration and OEM/ODM project support
The supplied SE3 material shows the main DVR, front and rear cameras, GPS module, wired remote and mounting hardware. Final package contents, storage card, cable lengths, branding and packaging should be confirmed for each order.
Product configuration
Confirm the required cameras, GPS, wired remote, mounting hardware and storage option before production.
Brand customization
Discuss logo, interface, packaging and documentation requirements for distributor or OEM/ODM projects.
Technical confirmation
Confirm motorcycle voltage, installation position, app compatibility and final accessory list before ordering.
SE3 motorcycle dashcam FAQ
Does the SE3 record both the front and rear of a motorcycle?
Yes. It supports front and rear 1920 × 1080P recording at 30 FPS.
Does the SE3 motorcycle dashcam use 5GHz Wi-Fi?
Yes. Its 5GHz Wi-Fi connection supports compatible mobile preview, playback, download and supported sharing.
Does the SE3 include GPS route tracking?
The product supports GPS position recording, route-review information and a compass function.
What are the SE3 waterproof ratings?
The main unit and wired remote are rated IP65, while the front and rear cameras are rated IP67.
What storage capacity does the SE3 support?
It supports storage cards from 32GB to 256GB.
What motorcycle voltage range does the SE3 support?
The supplied specification lists a 10–30V input with regulated 5V power for the system.
Discuss an SE3 motorcycle dashcam project
Tell Arvov your market, order quantity, motorcycle application, branding needs and required package configuration.
