OEM-Style Aftermarket Solution

Aftermarket Car TPMS for Toyota & Honda

Arvov Car TPMS is an aftermarket tire pressure monitoring system for selected Toyota and Honda vehicles with a suitable factory-style reserved dashboard blind hole. The compact display connects to ACC power and shows real-time tire pressure and temperature for all four tires.

4 Tires0–8 Bar / 0–116 PSI433.92 MHz RFIP67 Sensors
Request a Quote
Toyota and Honda aftermarket TPMS display installation in reserved dashboard position
Four-Tire Monitoring

Centralized Car Tire Pressure Monitoring

View tire pressure and temperature from one compact dashboard display, with selectable units and abnormal-condition alerts.
01

4-Tire Monitoring

Displays tire pressure and temperature for all four tires at the same time.
02

Automatic Alarms

433.92 MHz RF communication supports abnormal-condition alerts.
03

Selectable Units

Choose PSI or BAR, and °C or °F for the display.
04

Position Exchange

Supports tire position exchange after tire rotation or wheel changes.
Installation Process

How the Car TPMS Works

Confirm the vehicle fitment first, then select the appropriate sensor type and complete pairing.
1

Confirm Fitment

Check the dashboard position and vehicle application.
2

Choose Sensors

Select internal valve sensors or external valve-cap sensors.
3

Install & Pair

Fit the display to ACC power and pair the sensors.
4

Monitor Tires

View tire pressure and temperature while driving.
Sensor Options

Choose the Installation That Fits Your Vehicle

Internal and external options support different aftermarket installation requirements.

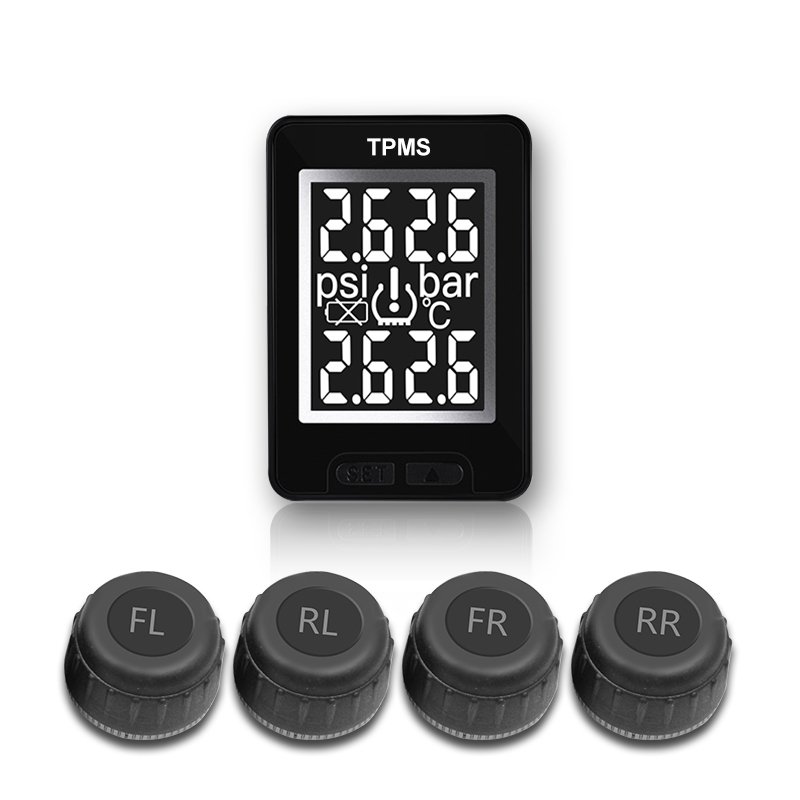

Car TPMS kit with four external tire pressure sensors
External Sensor OptionInstalls on the valve stem for a straightforward retrofit.

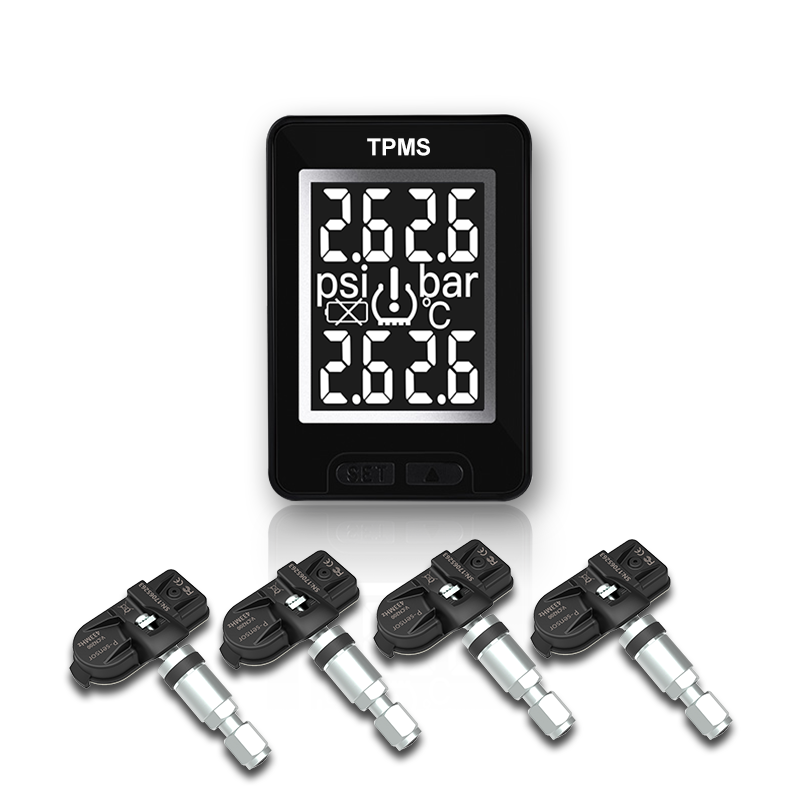

Car TPMS kit with four internal valve tire pressure sensors
Internal Sensor OptionInstalls inside the tire with the valve for an in-tire solution.
Technical Data

Car TPMS Technical Specifications

ItemSpecification
Radio frequency433.92 MHz ±38 kHz
High-frequency modulationFSK
Low-frequency receiving frequency125 kHz ±5 kHz
Pressure range0–8 bar (0–116 psi)
Pressure resolution2.75 kPa
Pressure accuracy±0.1 bar (0–70°C); ±0.15 bar (−20–85°C); ±0.48 bar (−40–125°C)
Temperature range−40°C to 125°C
Temperature resolution / accuracy1°C / ±3°C (0–70°C)
Protection ratingIP67
Internal sensor batteryCR2450, 240 mAh; estimated 3–5 years
External sensor batteryCR1632, 130 mAh; estimated 1–2 years

Specifications are subject to confirmation for the final vehicle application.

Frequently Asked Questions

Car TPMS FAQ

Which vehicles can use this Car TPMS?It is designed for selected Toyota and Honda aftermarket applications. Fitment must be confirmed by the specific vehicle model and reserved dashboard position.
What is the difference between internal and external sensors?External sensors fit on the valve stem for a simple retrofit. Internal sensors are installed inside the tire with the valve.
Can I change the tire positions shown on the display?Yes. The system supports a tire position exchange function.
Which values can be shown on the display?The display shows pressure and temperature for all four tires, with PSI/BAR and °C/°F unit options.
PROJECT INQUIRY

Build the Right Car TPMS for Your Vehicle

Share your vehicle application and dashboard installation details. Our team can help confirm the appropriate TPMS configuration.

Send Project DetailsEmail Arvov

Product information updated August 2026. Specifications are subject to confirmation for the final vehicle application.
