Tesla TPMS Sensors for BLE and 433 MHz Replacement
Arvov supplies direct-fit aftermarket Tesla TPMS sensor options for compatible vehicles using 2.4 GHz BLE or 433 MHz RF communication. Confirm the original sensor version before ordering because the two systems are not interchangeable.
Choose the Correct Tesla TPMS Communication Version
Tesla vehicles may use either Bluetooth Low Energy or 433 MHz radio-frequency tire pressure sensors, depending on the vehicle configuration and production period. Arvov offers both replacement paths for distributors, workshops, wheel suppliers and automotive service businesses.
| Feature | 2.4 GHz BLE TPMS Sensor | 433 MHz RF TPMS Sensor |
|---|---|---|
| Communication | Bluetooth Low Energy | 433.92 MHz RF |
| Vehicle Connection | Communicates with the compatible vehicle’s built-in TPMS system without an additional external receiver | Communicates with the compatible vehicle’s original TPMS receiver module |
| Typical Application | Compatible Tesla vehicles originally equipped with BLE sensors | Compatible earlier Tesla vehicles originally equipped with 433 MHz sensors |
| Reference Number | 1490701-01-B series | 1034602-00-A/C |
| Interchangeability | Not interchangeable. Match the communication type to the original vehicle specification. | |

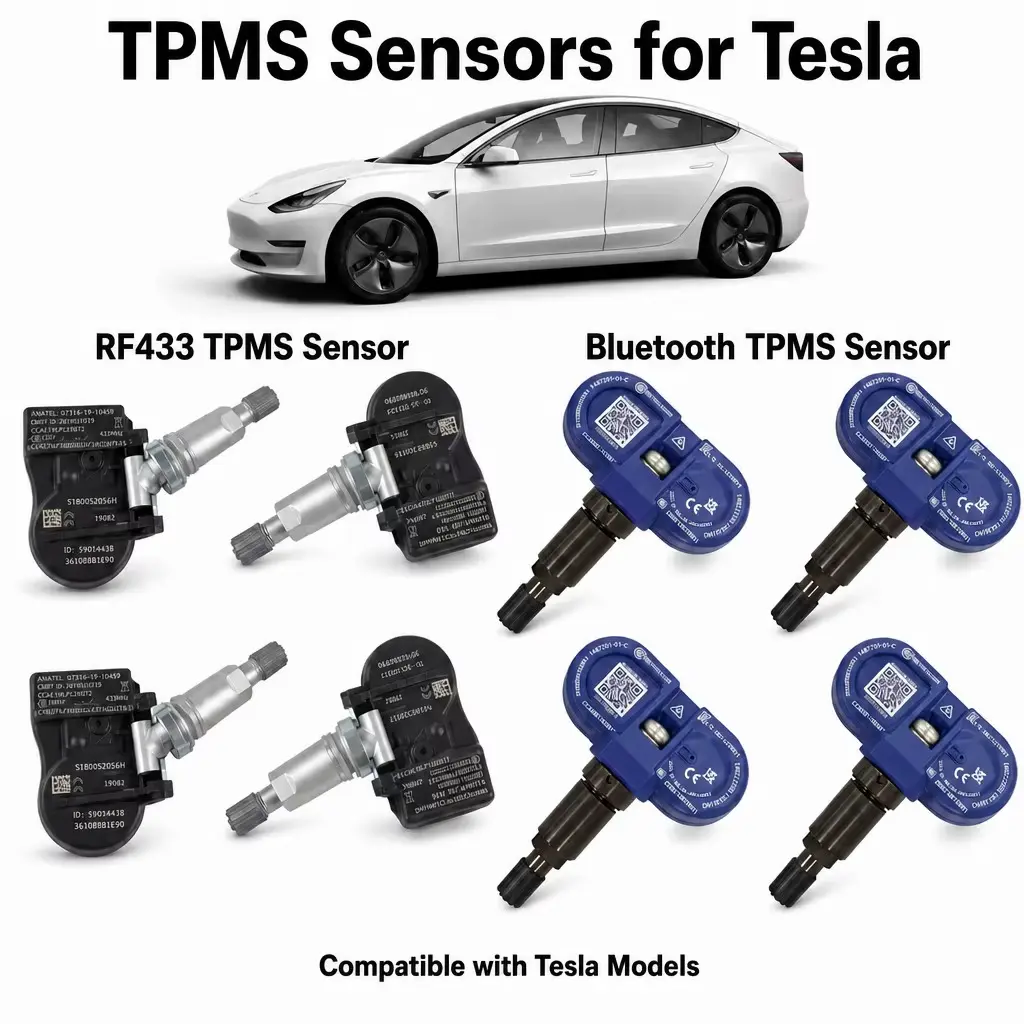

Tesla Bluetooth TPMS and 433 MHz Sensor Versions
Both versions use an internal, valve-mounted design and should be selected according to the original vehicle TPMS architecture.

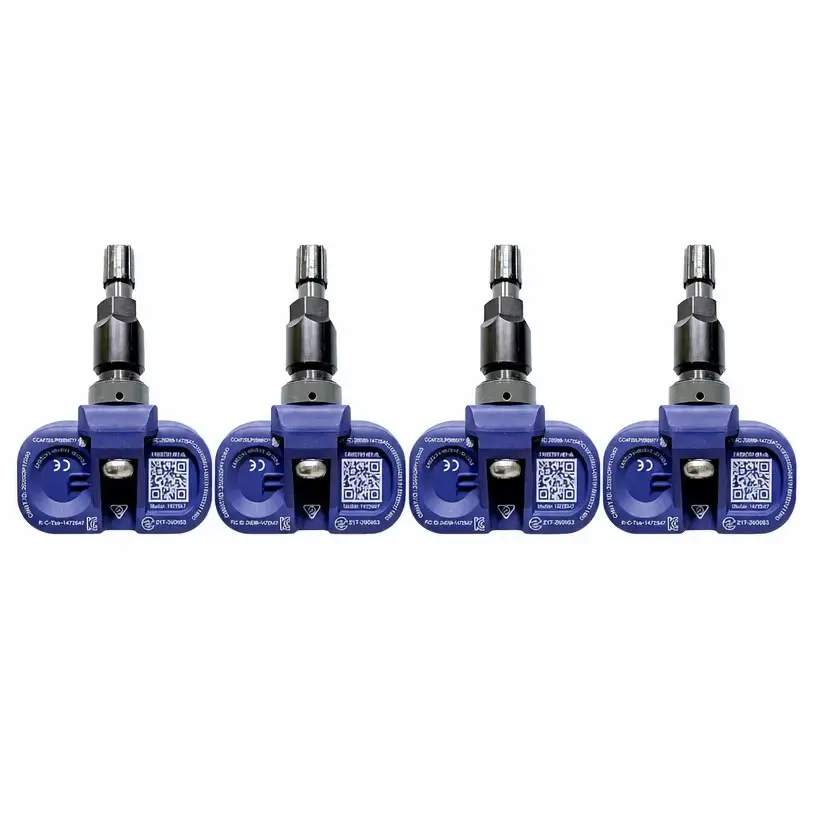

Tesla Bluetooth TPMS Sensor
Designed as a direct-fit aftermarket replacement for compatible Tesla applications originally equipped with BLE tire pressure sensors. The sensor communicates directly with the compatible vehicle TPMS system without an additional external receiver.
- 2.4 GHz BLE communication
- Internal valve-mounted design
- Automatic vehicle-system reconnection after installation and driving
- Reference: 1490701-01-B series

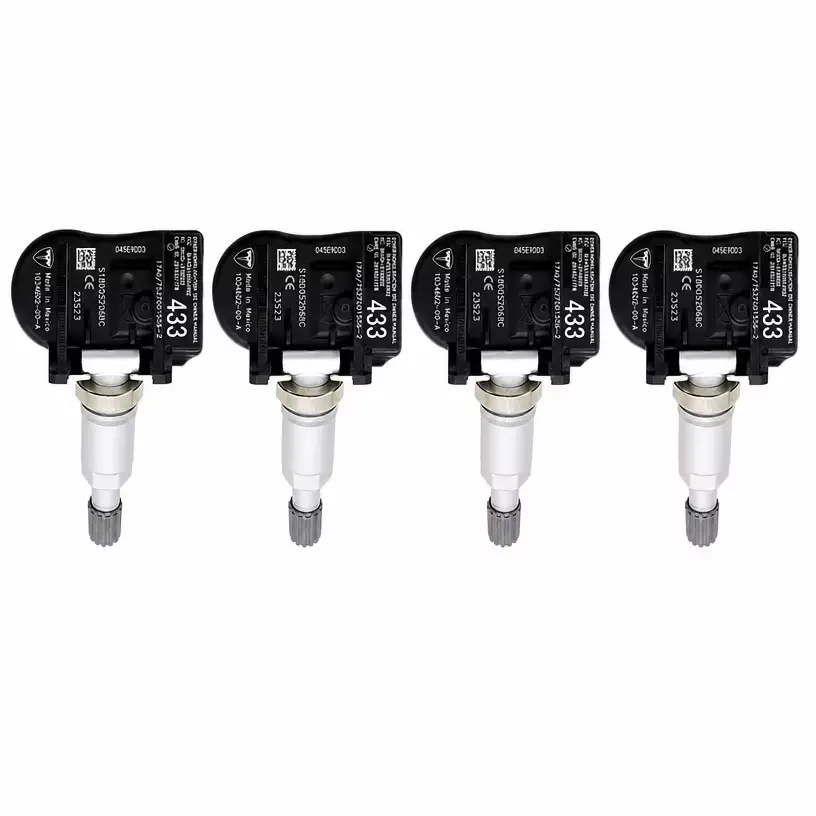

Tesla 433 MHz TPMS Sensor
Designed for compatible vehicles originally equipped with the earlier 433 MHz RF system. It transmits to the vehicle’s existing TPMS receiver module and cannot replace a BLE-version sensor.
- 433.92 MHz RF communication
- 125 kHz low-frequency reception
- Internal valve-mounted design
- Reference: 1034602-00-A/C
Compatible Tesla Vehicle Applications
Compatibility must be checked against the original sensor technology rather than assumed from the model name alone.
Model 3 and Model Y
Later production vehicles may use BLE sensors, while some earlier applications use 433 MHz RF. Confirm the original sensor or OE reference before replacement.
Model S and Model X
Refreshed configurations may use BLE sensors, while pre-refresh applications may use 433 MHz RF. Verify the vehicle configuration before ordering.
Cybertruck
BLE replacement sensor support is available for compatible Cybertruck applications. Confirm the original reference and valve configuration for the target vehicle.
From In-Wheel Measurement to Vehicle Display
The sensor measures tire pressure and temperature inside the wheel, then sends data through the communication system already supported by the vehicle.
Measure Tire Conditions
The internal sensor monitors tire pressure and temperature while its accelerometer supports motion-based operation and power saving.
Transmit by BLE or RF
The selected sensor version communicates through 2.4 GHz BLE or 433.92 MHz RF, matching the original vehicle architecture.
Display in the Vehicle
The compatible vehicle system receives the sensor signal and displays tire information without an additional aftermarket monitor.
Professional Internal Sensor Installation
These are in-wheel sensors. Installation requires tire removal, valve installation, correct torque procedures and wheel balancing.
Confirm the Version
Identify BLE or 433 MHz by checking the original sensor, OE reference, production information and valve configuration.
Install and Balance
Fit the internal sensor using suitable tire-service equipment, then rebalance the wheel before returning the vehicle to service.
Drive to Reconnect
After installation or a TPMS reset, drive the vehicle according to its service procedure so the compatible system can reconnect and update wheel positions. Timing varies by model and configuration.
Tesla TPMS Sensor Specifications
| Parameter | Specification |
|---|---|
| Sensor Design | Internal valve-mounted TPMS sensor |
| Communication Options | 2.4 GHz BLE or 433.92 MHz ±30 kHz RF |
| Battery | CR2032, 220 mAh, sealed non-replaceable design |
| Typical Battery Life | Over 5 years under typical operating conditions |
| Standby Current | <0.7 μA |
| Emission Current | <10 mA |
| Pressure Range | 0–8 bar (0–116 PSI) |
| Pressure Accuracy | ±0.1 bar at 0°C to 50°C; ±0.24 bar at −30°C to 60°C |
| Temperature Measurement | −20°C to 85°C; 1°C resolution |
| Operating Temperature | −20°C to 125°C |
| Protection Rating | IP67 |
| Approximate Weight | 30 g |
BLE- and RF-specific parameters are separated because ASK modulation and 125 kHz reception apply to the 433 MHz RF version. Confirm the final datasheet for the exact ordered model.
Tesla TPMS Samples, Bulk Supply and Custom Projects
Arvov supports replacement-parts distributors, wheel and tire businesses, workshops, online sellers and automotive electronics partners with sensor selection, sample testing and volume-order support.
Sample Evaluation
Order BLE or 433 MHz samples to verify fitment and vehicle-system communication before a bulk purchase.
Application Matching
Our team can review vehicle details, original sensor technology and OE reference information to identify the appropriate version.
OEM/ODM Discussion
Branding, packaging and project requirements can be discussed for qualified volume programs.
Tesla TPMS Sensor FAQ
What is the difference between Tesla BLE and 433 MHz TPMS sensors?
The versions use different communication systems. BLE sensors communicate over 2.4 GHz Bluetooth Low Energy, while RF sensors communicate at 433.92 MHz. They are not interchangeable.
Do Tesla Bluetooth TPMS sensors need an external receiver?
No additional external receiver is required when the BLE sensor is used with a compatible vehicle originally designed for that TPMS system.
Can I identify the correct sensor only by the Tesla model year?
No. Production changes and market configurations can vary. Confirm the original sensor frequency, OE reference number, production date and valve appearance before ordering.
Does installation require removing the tire?
Yes. These are internal valve-mounted sensors. Tire dismounting, proper installation and wheel balancing are required.
Will the vehicle reconnect to the new sensor automatically?
Compatible vehicles can reconnect after installation, reset and driving. The required procedure and time vary by model and configuration, so follow the applicable vehicle service instructions.
How long does the Tesla TPMS sensor battery last?
The expected battery life is over five years under typical operating conditions. Actual life varies with temperature, driving conditions and transmission activity.
Can I order Tesla TPMS samples before a bulk purchase?
Yes. Arvov can provide sample support so distributors and workshops can evaluate fitment and communication before placing a larger order.
Trademark notice: Tesla, Model 3, Model Y, Model S, Model X and Cybertruck are trademarks of Tesla, Inc. Arvov is not affiliated with or endorsed by Tesla, Inc.
Last updated: August 21, 2026.
Need the Correct Tesla TPMS Sensor?
Send us the vehicle model, production date, original sensor frequency, OE reference number and required quantity. We will help check the appropriate BLE or 433 MHz replacement option.
