SE70 Motorcycle Safety Recorder
SE70 Motorcycle Dash Cam with 2K Front Camera & BSD Warning
The Arvov SE70 combines a 2K front camera, 1080P rear camera, BSD blind-spot monitoring, front-vehicle warning, GPS route review, 5GHz Wi-Fi, voice remote control and optional TPMS in one motorcycle-ready system.
Motorcycle recording and rider-assistance functions
SE70 is designed for riders, distributors and OEM/ODM projects that need front-and-rear recording plus practical safety alerts. Its integrated display combines video, GPS information and optional tire-pressure data for two-wheel applications.
2K front and 1080P rear motorcycle recording
The front camera records at 2560 × 1440P and the rear camera at 1920 × 1080P, both at 30 FPS. A 150° field of view, TS video format, loop recording and automatic recording help capture useful riding footage.
- 2K front-camera detail
- 1080P rear-camera coverage
- 150° field angle
- WDR, loop recording and automatic recording
5GHz Wi-Fi mobile video access
Connect a compatible phone to preview, review and download recorded video without removing the storage card. The 5GHz Wi-Fi connection supports a convenient workflow for field review and supported sharing.
- Real-time mobile preview
- Remote playback
- Video download
- Supported one-tap sharing through the compatible app

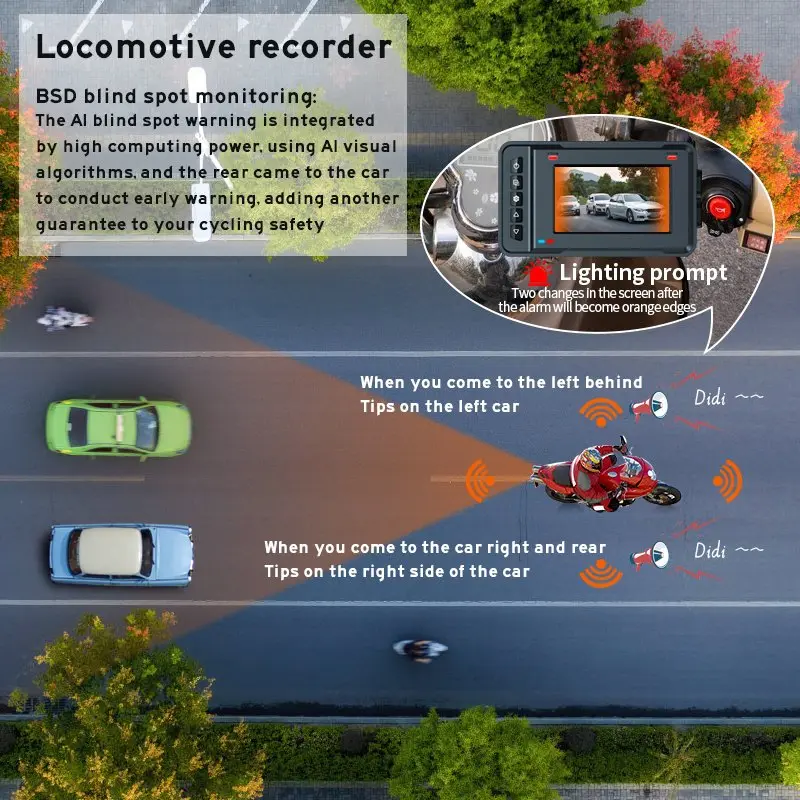

BSD blind-spot and front-vehicle warnings
SE70 uses camera-based rider-assistance functions to warn of vehicles in relevant blind-spot areas and support front-vehicle awareness. These assistance features do not replace safe riding, mirrors or direct observation.
- BSD blind-spot monitoring
- Left and right warning prompts
- Front-vehicle warning support
- Visual and audible alerts according to the configured system
SE70 motorcycle dash cam specifications
Specifications below are based on the supplied SE70 product information. Confirm the final package, storage card and optional TPMS configuration before ordering.
| Model | SE70 |
|---|---|
| Display | 3.5-inch, 854 × 480 |
| Product size / weight | 113 × 62 × 28 mm / 210 g |
| Camera resolution | Front 2560 × 1440P at 30 FPS; rear 1920 × 1080P at 30 FPS |
| Field angle | 150° |
| Waterproof rating | Lens IP68; main unit IP67; remote control IP67 |
| Recording | TS video, loop recording and automatic recording |
| Processor | JL5709 |
| Connectivity | 5GHz Wi-Fi and Bluetooth 5.0 |
| Navigation / sensors | GPS, compass, route review, G-sensor and CMOS |
| Rider assistance | BSD blind-spot monitoring and front-vehicle warning |
| Storage | 32 GB to 256 GB SD card support |
| Power | 10–30 V input with 5 V conversion; super capacitor |
| Operating temperature | −20 to 70 °C |
| Other functions | WDR, multilingual interface, compatible app, voice remote and optional TPMS |
Installation and configuration guidance
Install the front and rear cameras where their 150° views are unobstructed. Secure the aluminum-alloy anti-shake, shock-absorbing and anti-theft bracket, protect all cable connections and confirm that seals are correctly fitted.
- Electrical input: 10–30 V with 5 V conversion
- Camera lenses: IP68; main unit and remote control: IP67
- Storage support: 32 GB to 256 GB SD card
- Optional TPMS requires two compatible motorcycle tire-pressure sensors
- Rider-assistance warnings require correct camera positioning and configuration
SE70 motorcycle dash cam FAQ
What camera resolution does the SE70 support?
The front camera records at 2560 × 1440P and the rear camera at 1920 × 1080P, both at 30 FPS.
Does the SE70 provide blind-spot warnings?
Yes. The supplied product information lists BSD blind-spot monitoring and front-vehicle warning functions. These are rider-assistance features and do not replace safe observation.
Can SE70 videos be reviewed on a phone?
Yes. SE70 supports mobile preview, playback, download and supported sharing through a compatible app using 5GHz Wi-Fi.
Is TPMS included with the SE70?
TPMS sensors are optional. Confirm whether two motorcycle tire-pressure sensors are required when requesting a quotation.
Is the SE70 waterproof?
The camera lenses are specified at IP68, while the main unit and remote control are specified at IP67. Correct installation and cable sealing remain important.
