SE65 Motorcycle Recording System
SE65 Dual 1080P Motorcycle Dashcam with GPS
The Arvov SE65 combines front and rear 1080P recording, GPS route review, 5GHz Wi-Fi mobile access, a waterproof wired remote control and flexible motorcycle mounting options in one compact system.
Dual-camera recording for motorcycle applications
SE65 is designed for riders, distributors and OEM/ODM projects that need front-and-rear video recording with convenient mobile review. Its 3.5-inch display, GPS information and physical remote support everyday motorcycle installation and operation.
Front and rear 1080P motorcycle recording
Both cameras record at 1920 × 1080P and 30 FPS. The 150° field of view, TS video format, loop recording, automatic recording and WDR support help preserve useful riding footage in compatible recording conditions.
- Dual 1080P cameras at 30 FPS
- 150° front and rear field of view
- TS video and loop recording
- Automatic recording and WDR support

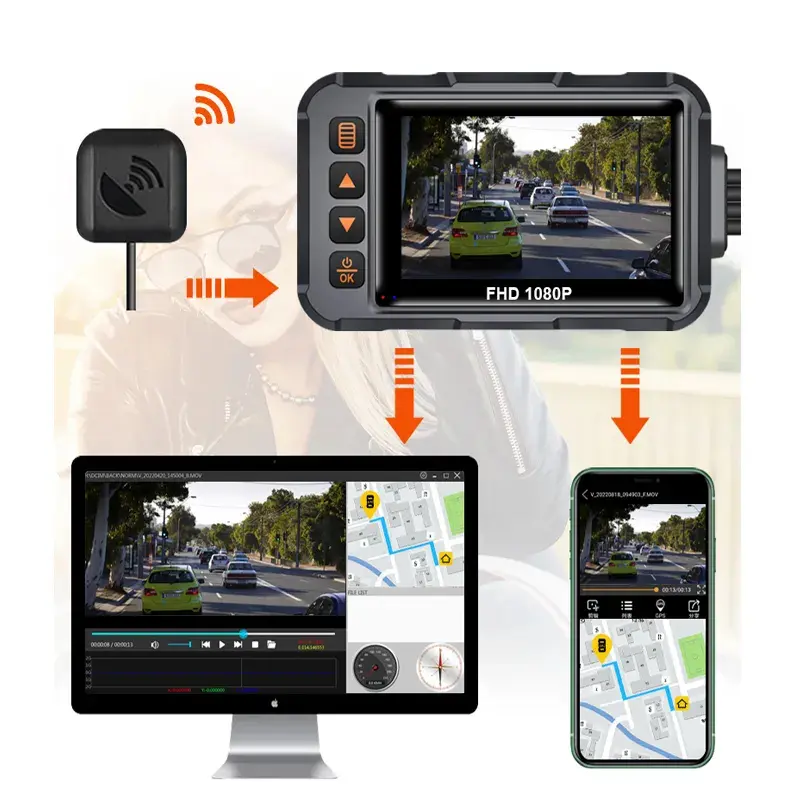

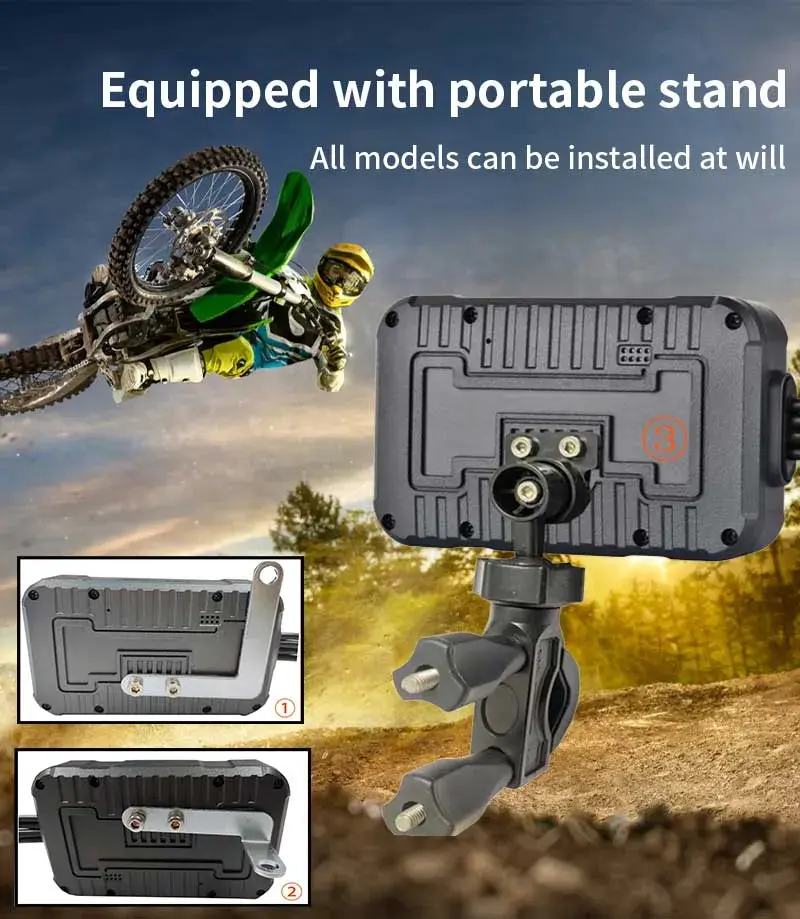

GPS route review and flexible mounting options
The supplied SE65 specification includes GPS positioning, route-tracking review and compass information. Multiple mounting arrangements support different motorcycle installation requirements, while the aluminum-alloy bracket is designed for anti-shake, shock-absorbing and anti-theft installation.
- GPS position and route review
- Compass information
- Flexible bracket orientations
- Motorcycle handlebar mounting support

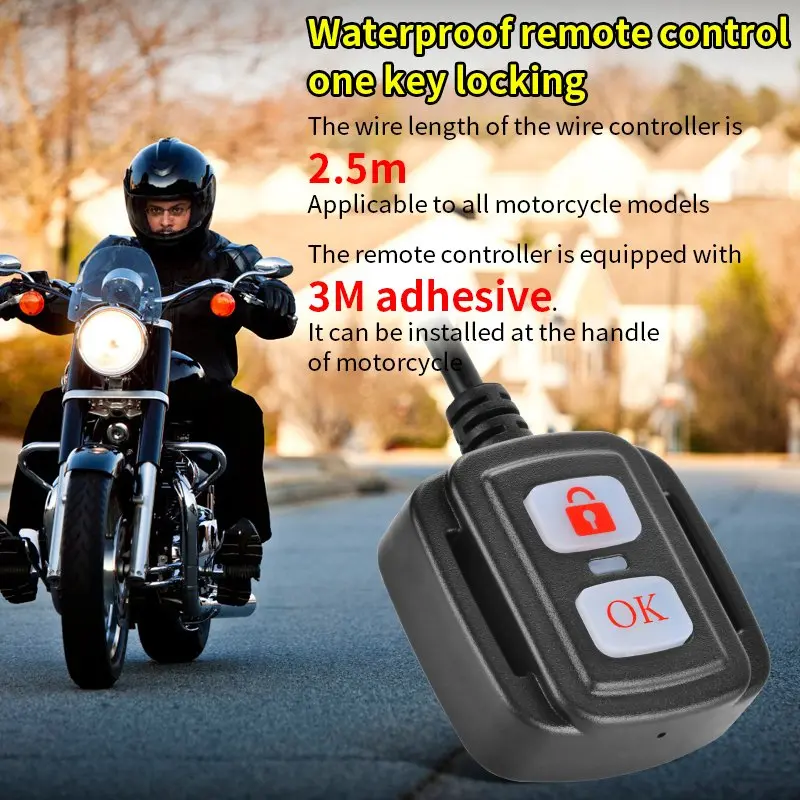

5GHz Wi-Fi and waterproof wired remote control
Connect a compatible phone through 5GHz Wi-Fi for supported video preview, playback, download and sharing. The 2.5 m wired remote can be positioned near the motorcycle handlebar and supports one-key protection of important video clips.
- Mobile video preview and playback
- Video download and supported sharing
- 2.5 m wired remote cable
- 3M adhesive mounting support for the remote
SE65 motorcycle dashcam specifications
Technical data below is based on the supplied SE65 product specification. Confirm the final accessories, mounting arrangement and storage card before ordering.
| Model | SE65 |
|---|---|
| Display | 3.5-inch, 854 × 480 |
| Product size / weight | 113 × 62 × 28 mm / 210 g |
| Camera resolution | Front and rear 1920 × 1080P at 30 FPS |
| Field angle | 150° |
| Waterproof rating | Lens IP68; main unit IP67; remote control IP67 |
| Recording | TS video, loop recording and automatic recording |
| Processor | JL5709 |
| Connectivity | 5GHz Wi-Fi and Bluetooth 5.0 |
| Navigation / sensors | GPS, compass, route review, G-sensor and CMOS |
| Storage | 32 GB to 256 GB SD card support |
| Power | 10–30 V input with 5 V conversion; super capacitor |
| Operating temperature | −20 to 70 °C |
| Other functions | WDR, multilingual interface, compatible app and wired remote control |
Installation and compatibility guidance
Install the front and rear cameras where their 150° views are unobstructed. Secure the selected bracket, route the remote cable away from moving or hot components, protect cable connections and confirm that all seals are correctly fitted.
- Power input: 10–30 V with 5 V conversion
- Camera lenses: IP68; main unit and remote control: IP67
- Storage support: 32 GB to 256 GB SD card
- Remote cable length: 2.5 m
- Bracket selection depends on the motorcycle and installation position
SE65 motorcycle dashcam FAQ
Does the SE65 record both the front and rear of a motorcycle?
Yes. SE65 is specified with two 1920 × 1080P cameras recording at 30 FPS, each with a 150° field angle.
Can SE65 dashcam videos be reviewed on a phone?
Yes. The supplied specification lists mobile preview, playback, download and supported sharing through a compatible app using 5GHz Wi-Fi.
Does the SE65 include GPS?
Yes. SE65 supports GPS positioning, route-tracking review and compass information.
What does the wired remote control do?
The waterproof wired remote provides convenient handlebar-area operation and one-key protection of important video clips. Its cable is specified at 2.5 m.
Is the SE65 waterproof?
The camera lenses are specified at IP68, while the main unit and wired remote control are specified at IP67. Correct installation and cable sealing remain important.
