Bluetooth TPMS Sensor for Cars, Trucks & Trailers
Monitor tire pressure and temperature directly on an iPhone or Android device. This flexible BLE TPMS solution supports 2–40 wheels, internal or external sensors, and optional protocol integration with your own platform.
Smartphone-Based Tire Pressure Monitoring
The Arvov Bluetooth TPMS Sensor uses BLE 5.0 communication to send tire data to the Tire Kim app, available for iOS and Android. It continuously monitors pressure and temperature and alerts the driver to unsafe tire conditions.
2–40 Wheel Support
Configure the system for motorcycles, passenger cars, motorhomes, buses, trailers and commercial trucks.
Multiple Safety Alerts
Receive warnings for high or low pressure, slow leakage, rapid leakage, high temperature and tire blowout conditions.

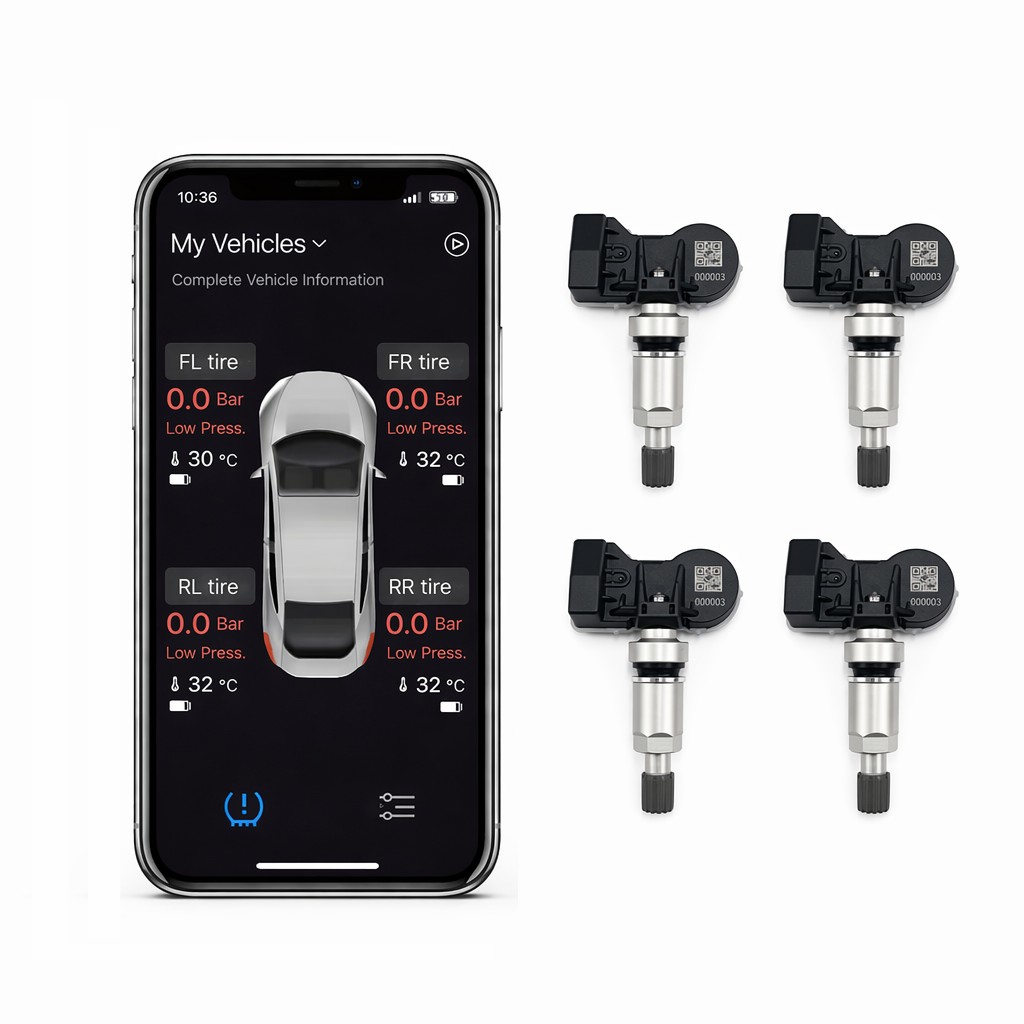

Internal or External Sensors

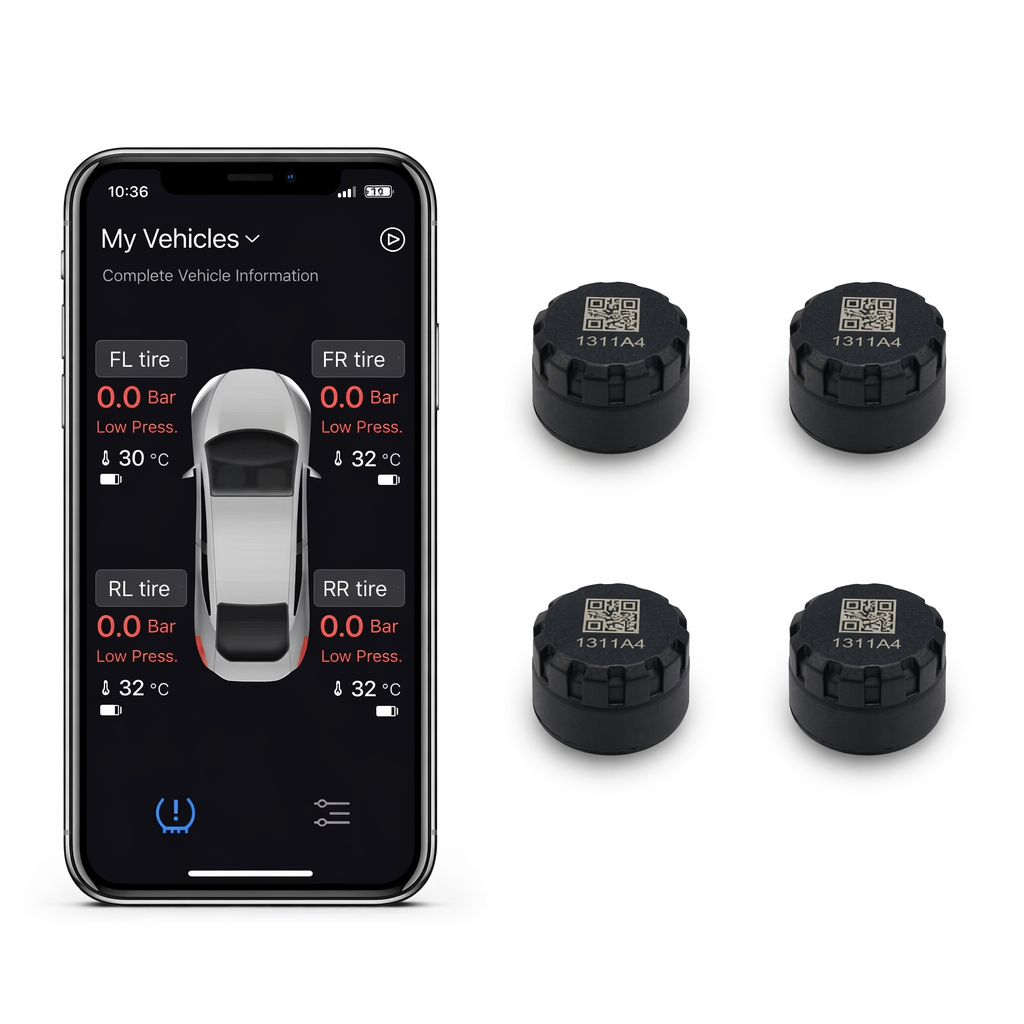

Choose internal valve-mounted sensors or convenient external cap sensors to match your installation requirements.
Up to 16 Bar / 232 PSI
Separate pressure ranges cover passenger vehicles and higher-pressure commercial vehicle applications.
Platform Integration
An optional Bluetooth communication protocol helps customers integrate TPMS data into their own app, telematics platform or vehicle system.
Automotive-Grade Components
Automotive-grade chipsets and Maxell batteries support stable performance and dependable service life.
Choose the Installation That Fits Your Vehicle

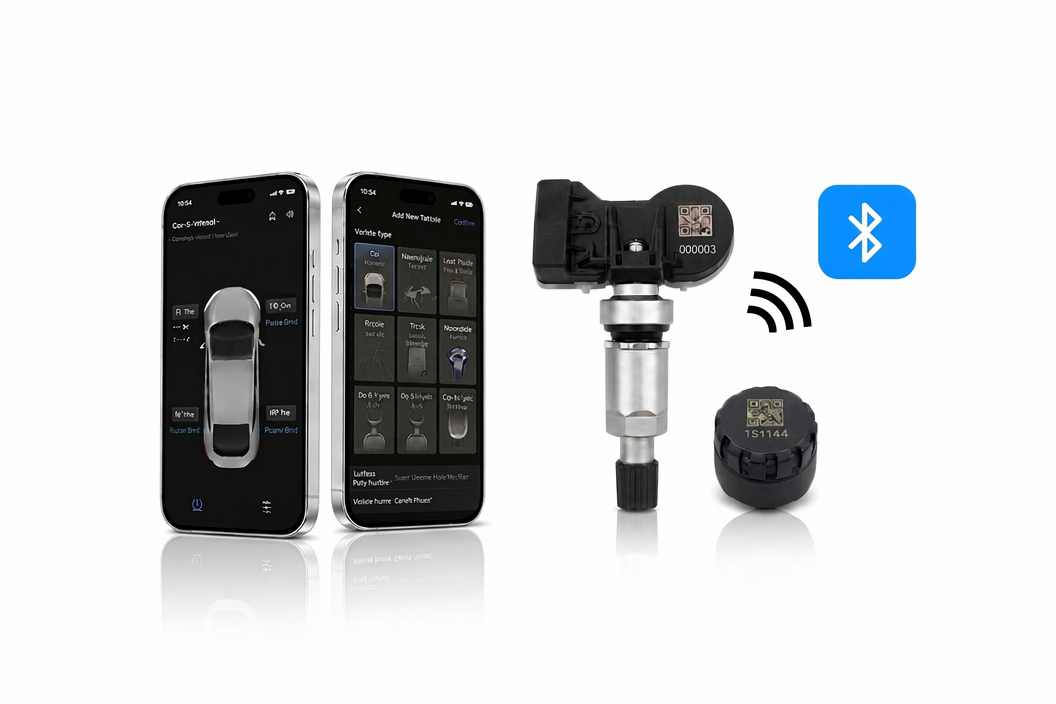

Both sensor types provide wireless pressure and temperature data through the smartphone app.
Bluetooth TPMS Sensor Specifications
| Parameter | Specification |
|---|---|
| Bluetooth / Radio Frequency | BLE 5.0 / 2.4 GHz |
| Mobile Compatibility | iOS and Android |
| Supported Wheels | 2–40 wheels |
| Sensor Options | External cap sensor / internal valve sensor |
| Battery Model | External: CR1632, 140 mAh Internal: CR2032, 210 mAh |
| Battery Brand | Maxell |
| Pressure Range | Passenger vehicles: 0–8 bar (0–116 PSI) Commercial vehicles: 0–16 bar (0–232 PSI) |
| Pressure Resolution | 1.572 kPa |
| Pressure Accuracy | ±0.1 bar at 0°C to 50°C ±0.24 bar at −20°C to 85°C |
| Temperature Range | −20°C to 85°C |
| Temperature Resolution | 1°C |
| Operating Temperature | −20°C to 85°C |
| Storage Temperature | −20°C to 85°C; room-temperature storage recommended |
| Protection Rating | IP67 |
| Battery Service Life | External sensor: 1–2 years Internal sensor: 2–3 years |
| Display Units | Pressure: bar / PSI; temperature: °C / °F |
Specifications are based on the supplied product document. Battery life varies with operating conditions, reporting frequency and temperature.
Flexible Bluetooth TPMS for Multiple Vehicles
A scalable monitoring solution for personal vehicles, specialty vehicles and commercial fleets.
Install the Sensors
Fit external cap sensors or install internal valve sensors at the required wheel positions.
Pair with the App
Download the Tire Kim app for iPhone or Android and pair each sensor with its wheel position.
Monitor Tire Data
View pressure and temperature data and receive alerts when an abnormal tire condition is detected.
Bluetooth TPMS Sensor FAQ
Which phones are compatible with this Bluetooth TPMS system?
The Tire Kim app supports both iPhone and Android devices and can be downloaded from the Apple App Store or Google Play.
How many wheels can the system monitor?
The system supports configurations from 2 to 40 wheels, depending on the vehicle and selected setup.
Can I choose between internal and external sensors?
Yes. External cap sensors and internal valve-mounted sensors are both available, allowing you to select the most suitable installation.
Is this Bluetooth TPMS suitable for trucks and trailers?
Yes. The commercial vehicle sensor range measures up to 16 bar (232 PSI), and the system supports multi-wheel configurations for trucks, buses and trailers.
Can the sensor data connect to our own platform?
Yes. Arvov can provide a Bluetooth communication protocol for integration with a compatible customer-owned app or platform. Contact our team to discuss your technical requirements.
Explore more TPMS solutions or contact Arvov for samples, pricing and OEM/ODM support.
Need a Bluetooth TPMS Solution for Your Project?
Tell us your vehicle type, wheel configuration, pressure range and integration requirements. Our team will recommend the right sensor setup.
