Smart Trailer Tire Safety
Trailer TPMS for 6–18 Wheels & Smart Trailer Exchange
Monitor trailer tire pressure, temperature and critical alarms in real time. Arvov Trailer TPMS combines an in-cab display, CAN Bus J1939 output, Bluetooth App pairing and an optional smart repeater for dependable trailer swap operations.
Complete Trailer Tire Pressure Monitoring System
The Arvov Trailer TPMS is designed for trailers, semi-trailers, tractor-trailer combinations, buses and other heavy-duty commercial vehicles. Wireless sensors measure tire pressure and temperature, while the display shows each wheel position and provides immediate low-pressure, high-pressure, high-temperature and tire-leakage warnings. The monitor can receive sensor data and output CAN Bus signals at the same time, allowing TPMS information to appear on both the dedicated display and a compatible vehicle system.
Wheel Capacity
Configure one display for common trailer and commercial-vehicle layouts with up to 18 monitored tires.
Sensor Options
Choose internal banded, internal valve or external sensors to suit the rim, tire and installation method.
Critical Alarms
Receive clear alerts for low pressure, high pressure, high temperature and tire leakage.
Firmware Updates
The display supports firmware updates for product maintenance and qualified customization projects.

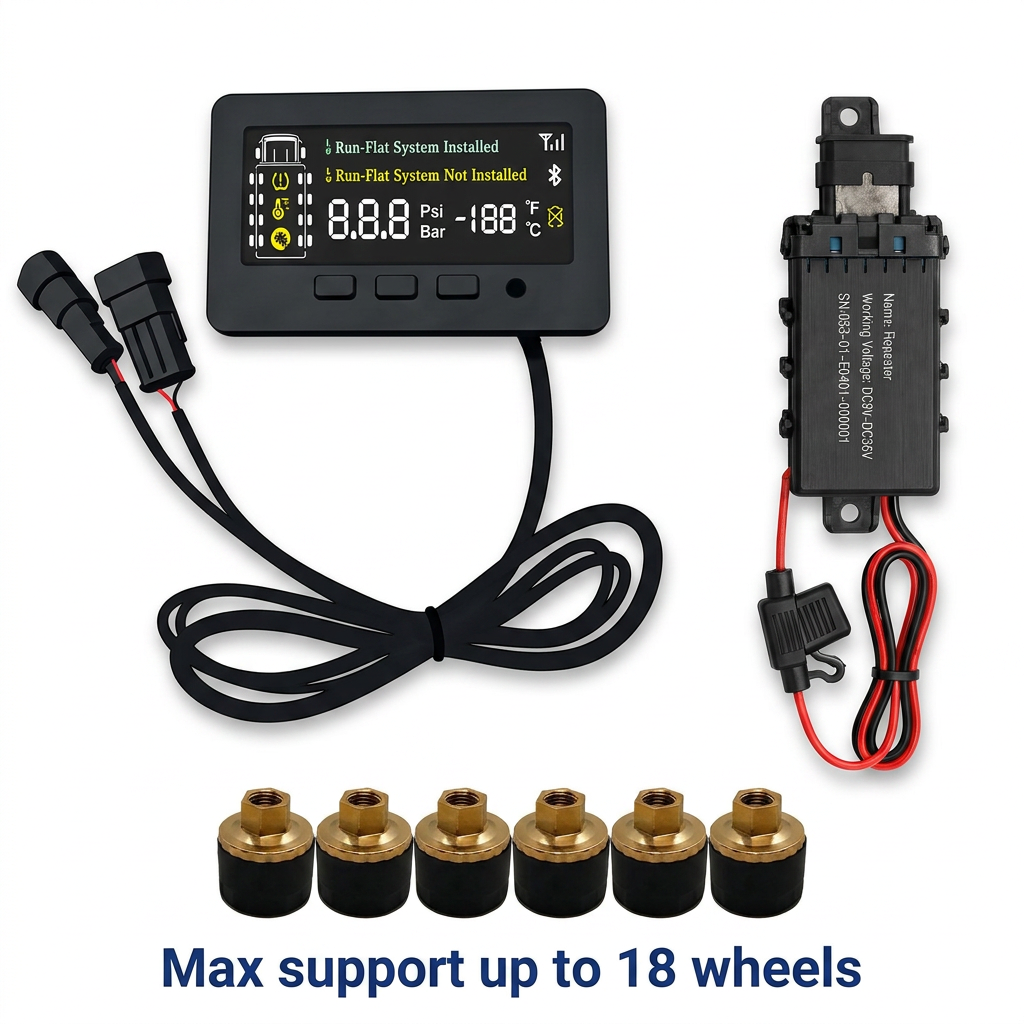

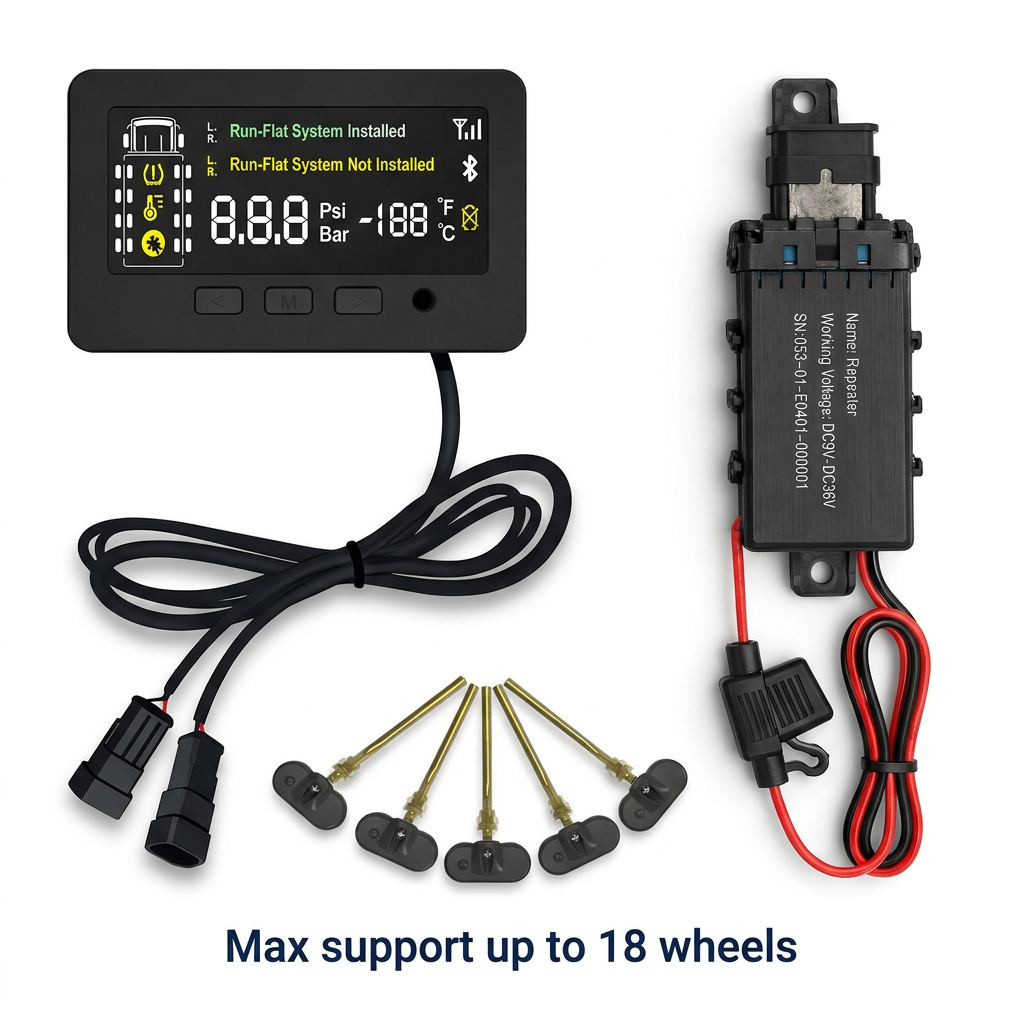

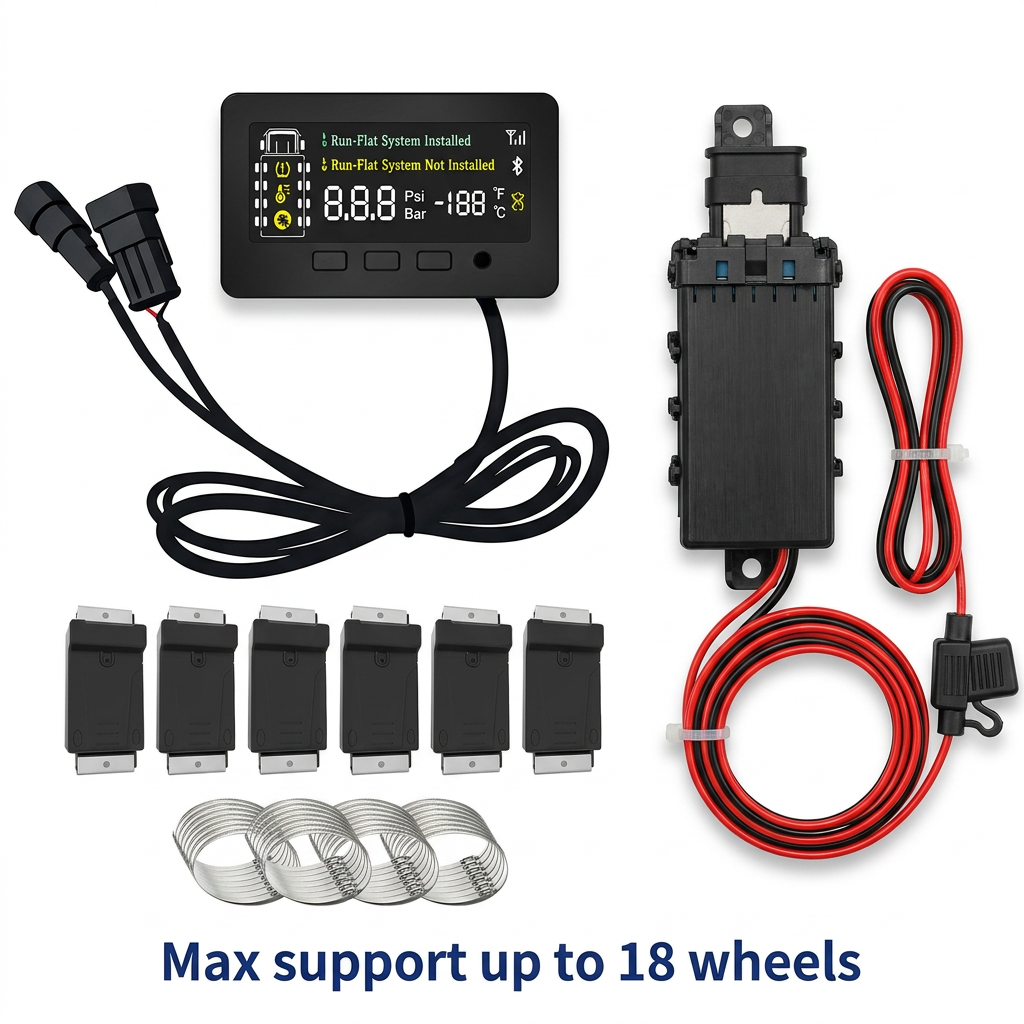

Trailer TPMS Product Images
Select the sensor configuration that matches your fleet. The same display and repeater architecture supports protected internal sensors or fast-install external sensors.
Key Features of the Trailer TPMS
CAN Bus J1939 Output
Output tire pressure, temperature and alarm information to a compatible vehicle system while keeping the dedicated TPMS display available to the driver. For integration details, see the CAN Bus TPMS Solution.
Smart Trailer Exchange
Add the smart repeater to support trailer swap operations. The system can reconnect the relevant trailer sensor group after the tractor changes trailers.
Bluetooth App Pairing
Use the smartphone App to scan sensor IDs and pair them with the TPMS display. This reduces manual input during installation and service.
Sensor Activation Tool
Wake sensors and pair them with the display using the optional TPMS activation tool, which is useful for fleet installation and maintenance.
Long-Range RF Transmission
433.92 MHz wireless sensors and the optional repeater support stable signal transmission across long trailers and demanding vehicle layouts.
Automotive-Grade Components
Vehicle-grade TPMS chipsets and batteries support reliable performance across a wide operating temperature range and long service life.
How the Smart Trailer TPMS Works
The system creates a clear path from each trailer tire to the driver and, when required, to a compatible vehicle dashboard.
Install the Sensors
Fit internal banded, internal valve or external sensors according to the trailer tire and rim configuration.
Pair Sensor IDs
Scan the sensor IDs with the App or use the activation tool to wake and pair each wheel position.
Monitor in Real Time
The display receives pressure, temperature and alarm data for up to 18 wheels and warns the driver immediately.
Exchange the Trailer
The smart repeater supports trailer swap workflows and helps reconnect the tractor-side display with the trailer sensor group.
Sensor Options for Trailers and Commercial Vehicles
Internal Banded Sensor
Mounted securely inside the wheel with a band. It is protected from external impact and is suitable for many heavy-duty rim structures.
Internal Valve Sensor
Replaces the tire valve and measures pressure and temperature from inside a compatible tubeless trailer tire.
External Sensor
Installs directly on the valve for fast retrofit, easy maintenance and convenient replacement on trailer fleets.
- Trailers and semi-trailers
- Tractor-trailer combinations
- Heavy-duty trucks and buses
- Mining trucks and earth movers
- Agricultural and forestry vehicles
- Construction and special-purpose fleets
Trailer TPMS Technical Specifications
| Wheel Capacity | 6–18 wheels |
|---|---|
| Communication Output | CAN Bus J1939 |
| Sensor Battery | Internal sensor: CR2450, 550 mAh; external sensor: CR1632, 130 mAh |
| Radio Frequency | 433.92 MHz ± 38 kHz |
| Standby / Emission Current | <0.7 μA / <10 mA |
| Transmission Power | <8 dBm (50 Ω) |
| RF Modulation | FSK |
| Low-Frequency Activation | 125 kHz ± 5 kHz, ASK |
| Pressure Range | 0–16 Bar (0–232 PSI) |
| Pressure Resolution | 2.75 kPa |
| Pressure Accuracy | ±0.2 Bar at 0–70°C; ±0.3 Bar at −20–85°C; ±0.48 Bar at −40–125°C |
| Temperature Range / Resolution | −40°C to 125°C / 1°C |
| Temperature Accuracy | ±3°C at 0–70°C |
| Operating / Storage Temperature | −40°C to 125°C |
| Protection Rating | IP67 |
| Expected Battery Life | Internal sensor: more than 8–10 years; external sensor: approximately 1–2 years |
Battery life varies with transmission frequency, alarm activity, usage and operating environment.
OEM & ODM Trailer TPMS Support
Arvov supports customized Trailer TPMS projects for distributors, trailer manufacturers, commercial-vehicle suppliers and fleet solution providers.
CAN Bus Protocol
Integrate tire pressure, temperature and alarm data with a compatible vehicle system. Protocol customization can be evaluated for qualified projects.
Hardware Configuration
Select the display, sensor type, repeater quantity and wheel layout according to the trailer, tractor and fleet operating model.
Brand Customization
OEM logo, packaging, interface and private-label options are available according to project quantity and technical requirements.
Trailer TPMS FAQ
How many wheels can the Trailer TPMS monitor?
The display supports configurations from 6 to 18 wheels, covering common trailers, semi-trailers, buses and commercial-vehicle combinations.
Does the system support trailer swap or trailer exchange?
Yes. The optional smart repeater is designed for trailer swap applications and helps the tractor-side display reconnect with the relevant trailer sensor group.
Can TPMS data appear on the vehicle dashboard?
Yes. The display can receive wireless sensor data and output CAN Bus J1939 signals to a compatible vehicle system, allowing TPMS information to be shown on both interfaces.
Which sensor type should I choose for a trailer?
Internal banded and internal valve sensors provide protected installation for compatible wheels. External sensors are useful for fast retrofit and convenient maintenance. The best choice depends on the rim, tire, valve and service environment.
How are trailer sensors paired with the display?
Sensor IDs can be scanned with the smartphone App or paired using the optional TPMS activation tool.
Can Arvov customize the Trailer TPMS?
Yes. OEM/ODM options may include CAN Bus protocol work, hardware combinations, display firmware, branding and packaging, subject to technical review.
Build the Right Trailer TPMS for Your Fleet
Tell us the trailer type, wheel quantity, sensor preference, exchange workflow and CAN Bus requirements. Our team will recommend a practical system configuration.
